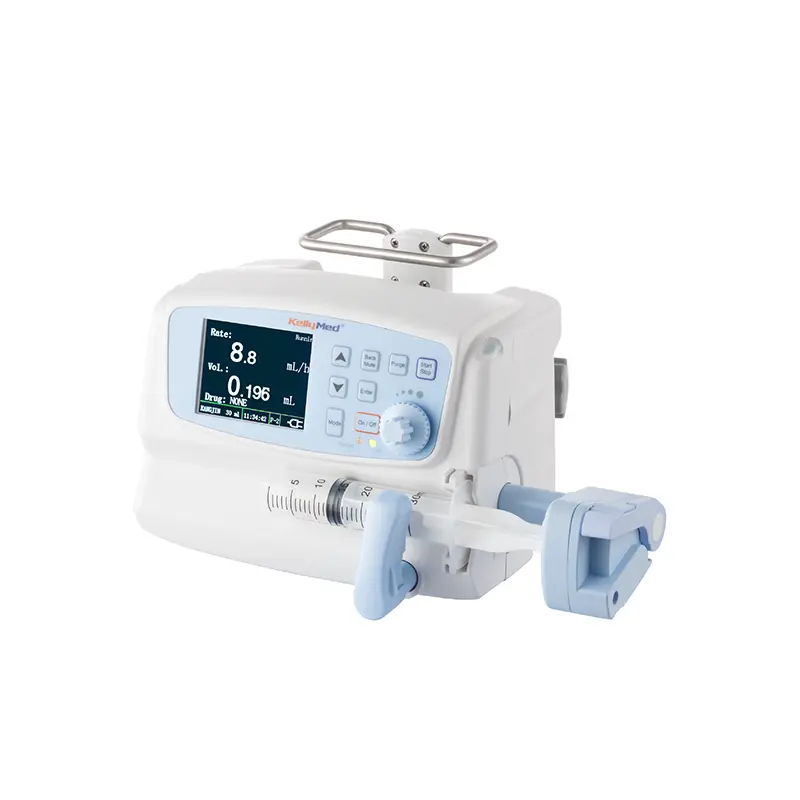

Kelly-Med Syringe Pump KL-605T

Features:

The Syringe Pump KL-605T is a medical device that delivers fluids, such as nutrients and medications, into a patient’s body in controlled amounts. There are many types of infusion pumps, including large volume, patient-controlled analgesia (PCA), elastomeric, syringe, enteral, and insulin pumps.

Features:

• Advanced mechanics for high infusion accuracy and consistency.
• Anti-Siphonage design.
• Comprehensive visible and audible alarms.
• Applicable syringe size: 5, 10, 20, 30, 50/60 ml.
• Customized syringe brand.
• Automatic bolus reduction after occlusion.
• Drug library with more than 60 drugs.
• Wireless management: central monitoring by Infusion Management System.
• DPS, the dynamic pressure system, detection of pressure variations in the Extension line.
• Up to 8 hours battery backup, battery status indication.

Specifications:

• Model: KL-605T
• Syringe Size: 5, 10, 20, 30, 50/60 ml
• Applicable Syringe: Compatible with syringe of any standard
• VTBI: 1-1000 ml (in 0.1, 1, 10 ml increments)
• Flow Rate: Syringe 5 ml: 0.1-100 ml/h ( )
  Syringe 10 ml: 0.1-300 ml/h
  Syringe 20 ml: 0.1-600 ml/h
  Syringe 30 ml: 0.1-800 ml/h
  Syringe 50/60 ml: 0.1-1200 ml/h
• Bolus Rate: 5 ml: 0.1-100 ml/h
  10 ml: 0.1-300 ml/h
  20 ml: 0.1-600 ml/h
  30 ml: 0.1-800 ml/h
  50/60 ml: 0.1-1200 ml/h
• Anti-Bolus: Automatic
• Accuracy: ±2% (mechanical accuracy≤1%)
• Infusion Mode: Flow rate: ml/min, ml/h
  Time-based
  Body weight
• KVO Rate: 0.1-1 ml/h (in 0.01 ml/h increments)
• Alarms: Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, pressure sensor error, system malfunction, reminder alarm, syringe installation error, syringe drop off
• Additional Features: Real-time infused volume,
  automatic syringe identification, mute button, purge, bolus, anti-bolus, automatic power switching, system memory, history log, key locker
• Drug Library: Available
• Occlusion Sensitivity: High, medium, low
• History Log: 50000 events
• Power Supply: AC 110/230 V, 50/60 Hz, 20 VA
• Battery: 14.8 V, rechargeable
• Battery Life: 8 hours at 5 ml/h
• Working Temperature: 5-40℃
• Relative Humidity: 20-90%
• Atmospheric Pressure: 700-1060 hpa
• Size: 245*120*115 mm
• Weight: 2.5Kg
• Safety Classification: Class Ⅱ, type BF
