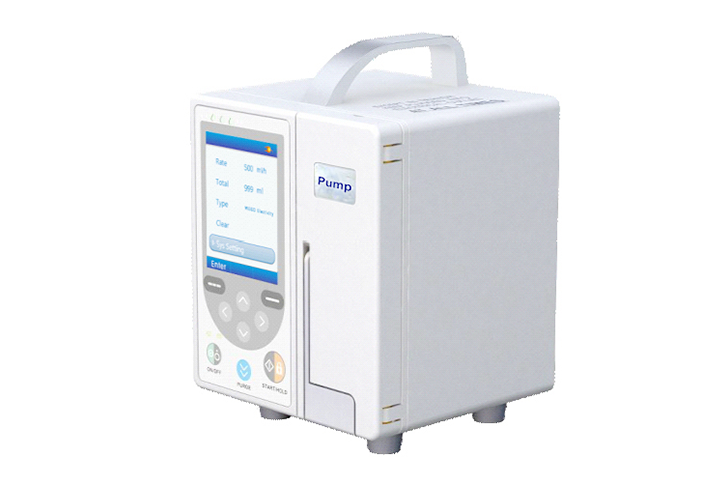

Contec Infusion Pump SP750

Description:

The product is a volumetric infusion pump, features in high safety, easy operation and long life. Flow control with high accurate and comprehensive alarm measures ensure patient’s safety and optimum therapeutic effect

Function:

• Flow control with high accuracy ensures optimum therapeutic effect.
• Be compatible with most standard IV Sets.
• New IV set provided by user can be calibrated by suppliers, and infusion parameters can be input into the pump, which ensures accuracy.
• 3.5” TFT-LCD.
• Operate with keys.
• Residual infusion time can be displayed during infusing.
• With reminder function for starting infusion.
• Alarm for occlusion, air bubble, door open and motor failure, etc.
• Threshold for air bubble and pressure alarm can be adjusted by medical personnel.
• Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.
• A.B.S–ANTI BOLUS system prevents instantaneous high-dose injection from the sudden obstruction disappearing.
• Stop infusing automatically during alarm(except for “NEAR END”, “KVO”, and “LOW BATTERY” alarms).
• Alarm volume can be adjusted.
• Power supply: AC/DC and built-in lithium battery.
• Compact aluminum enclosures and robust construction.
• USB port is convenient for technical personnel to update software..
• Infusion pump can be mounted on infusion pole in many directions by the versatile bracket.
• Infusion parameters can be saved after power off.

Performance:

• Type: volumetric infusion pump
• Infusion rate: 1~699ml/h, increment: 1ml/h
• Total volume: 1~9999ml/h, increment: 1ml/h
• Accuracy: ±5%(use the IV set calibrated)
• KVO rate:1~5ml/h(it can be adjusted by professional medical personnel)
• Display information: flow rate, total volume, accumulated infusion volume, residual time
• Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion, infusion reminder, communication failure and motor failure.
• Air bubble detector: ultrasonic
• Sensitivity for air bubble detector: 0.01~0.14ml(it can be adjusted by professional medical personnel)
• Sensitivity for pressure sensor: 1~7 grades(it can be adjusted by professional medical personnel)
• Safety classification: class I, type BF applied part
• Waterproof degree: IPX1
• Working mode: continuous working
• Power supply: AC:100~240V, 50/60Hz or DC: 12V
• Rechargeable Li-polymer battery, 7.4 V/3500mAh

Special safety measures:

• Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.
• Air bubble detector with high accuracy prevents air bubbles from entering patient’s body.
• Pressure sensor prevents occlusion for IV set.
• A.B.S system, when the high-voltage occlusion alarm appears, stop infusing immediately, and eliminate the pressure of the IV set automatically, which prevents instantaneous high-dose injection from the sudden obstruction disappearing.
• Infusion parameters during infusing are protected against being changed arbitrarily.
• With password protection function(in system parameter setting and IV set type interface).

Accessories:

• A versatile bracket
• A power cord
• A user Manual

Physical characteristic:

• Dimension: 197 mm(L)×145 mm(W)×135 mm(H)
• Weight: 2 Kg
