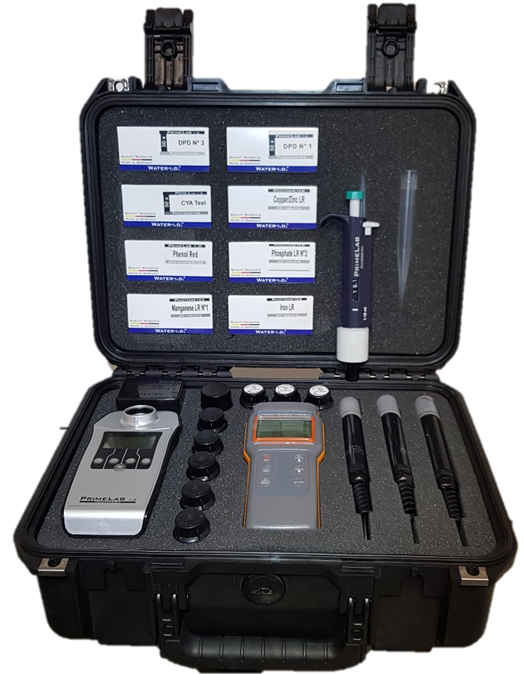

Green Drop Water Monitoring Kit

Green Drop Water Monitoring Kit Dimensions:

175 mm × 88 mm × 59 mm

Weight:

160 g

Spectral range:

380 nm – 780 nm with 7 open channels and ±40 nm overlap

Data Transmission

Built-in Bluetooth® – module

Calibration:

Auto-calibration by JENCOLOR sensor; determination of LED brightness

One Time Zero:

Intelligent OTZ (One Time Zero) function, detecting different ZERO types

Internal memory:

100 data records / 20 accounts records

Clock / Date:

RTC (real-time clock) with date function

Auto-Off:

Default = 10 minutes. Individually adjustable

Menu navigation:

Intuitive, display-controlled 4-button menu system; test instructions during the measurement process (can be skipped)

Power supply:

Optionally 4 × 1.5 V AAA batteries or 100–240 V AC, 50/60 Hz, 0.2 A → 5.0 V, 1200mA, 6 W

Display:

Graphical LCD display, monochrome

Operating languages:

German, English, Spanish, French

Environnent:

5 °C – 45 °C (41 °F – 113 °F) / 30 % – 90 %; rel. humidity

Water resistance:

The unit is splash-proof

Reagents:

The calibration curves of the individual parameters are matched to the reagents offered by the manufacturer.
The use of reagents by other manufacturers may result in measurement errors!
The scope of delivery of the PrimeLab includes solely high-quality reagents
“Made in Germany” and “Made in Britain”!

AZ8603 Technical details / features

pH range

2,00 ̴ 12.00

pH accuracy

+/- 0.1

pH resolution

0.01

Cond. range

0 ̴ 199.9, 0 ̴ 1999 uS/cm; 0 ̴ 19.99, 0 ̴ 69,9 mS/cm

Cond. accuracy

+/- 1% F.S +/- 1 digit

Cond. resolution

0.1 uS/cm, 1 uS/cm; 0.01 mS/cm, 0.1 mS/cm

Salinity range

0 ̴ 10.00 ppt; 0 ̴ 42.00 ppt (Sea Water)

Salinity accuracy

+/- 1% F.S +/- 1 digit

Salinity resolution

0.01 ppt, 0.1 ppt

D.O. range

0.0 ̴ 199.9% (0.0 ̴ 30.0 mg/L)

D.O. accuracy

+/- 3% of F.S. + 1 digit

D.O. resolution

0.1

Temp. range

0 ̴ 60.0oC

Temp. accuracy

+/ -0.5oC

Temp. resolution

0.1

Compatible probe

pH Probe, Cond. Probe and D.O. Probe could all be used on one meter at the same time

LCD size (mm)

32.5 (H) x 54 (W)

Operating temp. & RH%

0 ̴ 50oC, Humidity < 80%

Storage temp. & RH%

0 ̴ 60oC, Humidity < 90%

Dimension (mm)

169 (L) x 78 (W) x 43.4 (H)

Weight

200g

Power

6PCS AAA Batteries

Standard package

Meter / Manual / Carry case / Battery

Standard probe

pH probe / Cond. probe / D.O. probe / D.O. Electrolyte / 2 Membrane set / Cable clip (user can decide which probe to be included as standard)
