Blue Drop Water Monitoring Kits
Blue Drop Water Testing Monitoring Kits
Blue Drop Water Monitoring Kits
Blue Drop Water Monitoring Kits is suitable for laboratories in municipalities, mining, waterboards and other companies that need to analyse water quality.
Blue Drop Water Monitoring Kits

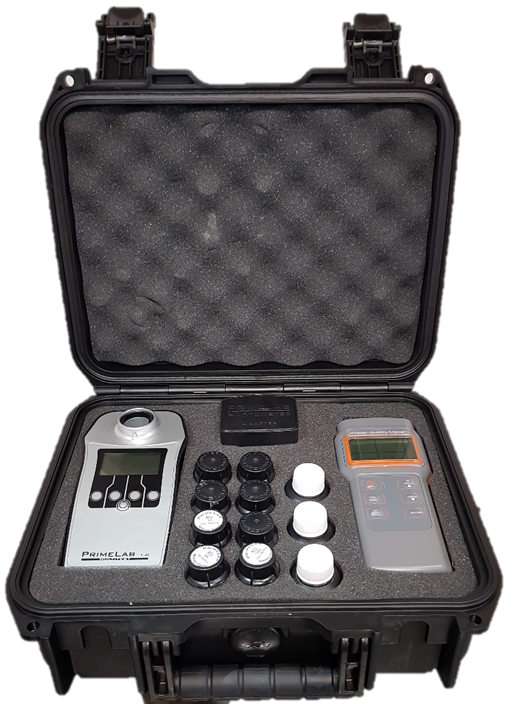

Kit contents: Blue Drop Water Monitoring Kits
- AZ86083-in-1pH-,Conductivity-and Dissolved Oxygenmeter
- Prime Lab Multi test with integrated Bluetooth®-module
- SBK Waterproof case
- DC adapter(220/110V)with interchangeable international plugs
- 4 × AAA 1.5 V batteries
- Bluetooth®-USBdongleforwirelessconnectiontoyourPC
- CD-ROM“PrimeLabDesktop
- 5 × 24 mm standard round cuvette (glass / 10 ml) with light absorberintegrated into lid
- Lightprotectionlidfor16mmstandardcuvettes
- 10 ml syringe
- Cleaning brush for cuvettes
- Stirringrod
- 100 ml plastic measuring tube
- Turbidity adapter including turbidity standards 0,5 ; 10 ; 1000NTU
- Prime lab variable micropipette 1000um-10000um
Photometer technical details / features:
|
Dimensions: |
175 mm × 88 mm × 59 mm |
|
Weight: |
160 g |
|
Spectral range: |
380 nm – 780 nm with 7 open channels and ±40 nm overlap |
|
Data Transmission |
Built-in Bluetooth® – module |
|
Calibration: |
Auto-calibration by JENCOLOR sensor; determination of LED brightness |
|
One Time Zero: |
Intelligent OTZ (One Time Zero) function, detecting different ZERO types |
|
Internal memory: |
100 data records / 20 accounts records |
|
Clock / Date: |
RTC (real-time clock) with date function |
|
Auto-Off: |
Default = 10 minutes. Individually adjustable |
|
Menu navigation: |
Intuitive, display-controlled 4-button menu system; test instructions during the measurement process (can be skipped) |
|
Power supply: |
Optionally 4 × 1.5 V AAA batteries or 100–240 V AC, 50/60 Hz, 0.2 A → 5.0 V, 1200mA, 6 W |
|
Display: |
Graphical LCD display, monochrome |
|
Operating languages: |
German, English, Spanish, French |
|
Environnent: |
5 °C – 45 °C (41 °F – 113 °F) / 30 % – 90 %; rel. humidity |
|
Water resistance: |
The unit is splash-proof |
|
Reagents: |
The calibration curves of the individual parameters are matched to the reagents offered by the manufacturer. |
|
AZ8603 Technical details / features |
|
|
pH range |
2,00 ̴ 12.00 |
|
pH accuracy |
+/- 0.1 |
|
pH resolution |
0.01 |
|
Cond. range |
0 ̴ 199.9, 0 ̴ 1999 uS/cm; 0 ̴ 19.99, 0 ̴ 69,9 mS/cm |
|
Cond. accuracy |
+/- 1% F.S +/- 1 digit |
|
Cond. resolution |
0.1 uS/cm, 1 uS/cm; 0.01 mS/cm, 0.1 mS/cm |
|
Salinity range |
0 ̴ 10.00 ppt; 0 ̴ 42.00 ppt (Sea Water) |
|
Salinity accuracy |
+/- 1% F.S +/- 1 digit |
|
Salinity resolution |
0.01 ppt, 0.1 ppt |
|
D.O. range |
0.0 ̴ 199.9% (0.0 ̴ 30.0 mg/L) |
|
D.O. accuracy |
+/- 3% of F.S. + 1 digit |
|
D.O. resolution |
0.1 |
|
Temp. range |
0 ̴ 60.0oC |
|
Temp. accuracy |
+/ -0.5oC |
|
Temp. resolution |
0.1 |
|
Compatible probe |
pH Probe, Cond. Probe and D.O. Probe could all be used on one meter at the same time |
|
LCD size (mm) |
32.5 (H) x 54 (W) |
|
Operating temp. & RH% |
0 ̴ 50oC, Humidity < 80% |
|
Storage temp. & RH% |
0 ̴ 60oC, Humidity < 90% |
|
Dimension (mm) |
169 (L) x 78 (W) x 43.4 (H) |
|
Weight |
200g |
|
Power |
6PCS AAA Batteries |
|
Standard package |
Meter / Manual / Carry case / Battery |
|
Standard probe |
pH probe / Cond. probe / D.O. probe / D.O. Electrolyte / 2 Membrane set / Cable clip (user can decide which probe to be included as standard) |
Blue Drop Water Monitoring Kits
