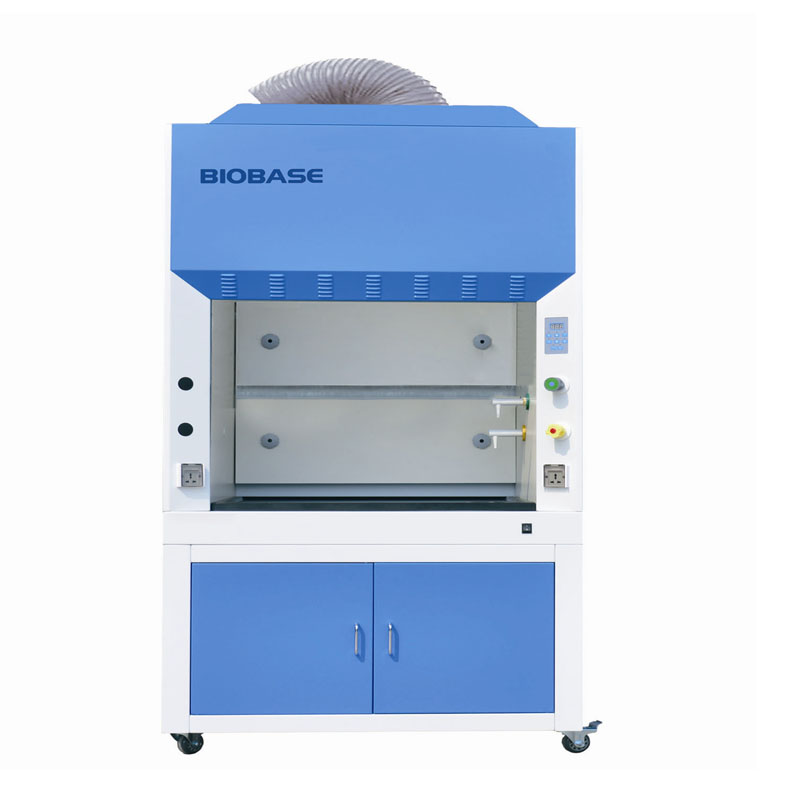

Fume Hood Ducted Cabinet FH1800

Fume Hood Ducted Cabinet FH1800

R115 988,00

Fume Hood Ducted Cabinet FH1800

Lead Time: 4-6 Weeks

Laboratory and Medical Fume Hood

The Special Cabinets are manufactured upon an order.

Laboratory and Medical Fume Hood with Water & Gas Remote Control

A fume hood is a type of local exhaust ventilation device that is designed to limit exposure to hazardous or toxic fumes, vapours or dusts. It’s mainly used in hospital labs, clinical trial labs, chemistry labs, university science labs, microbiology labs etc.

Fume Hood Ducted Cabinet FH1800
Advantage:
1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed: 9 levels
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure.

Technical Parameters:

Model FH1000(A) FH1200(A) FH1500(A) FH1800(A)
External Size (W*D*H) 1040*800*2200mm 1240*800*2200mm 1540*800*2200mm 1840*800*2200mm
Internal Size (W*D*H) 820*670*730mm 1020*670*730mm 1320*670*730mm 1620*670*730mm
Work Surface Height 850mm
Max Opening 520mm
Air Velocity 0.3~0.8m/s
Noise ≤68dB
Exhaust Duct PVC, Standard length: 4 meters.
Φ300mm
LED Lamp 8W*1 12W*1 16W*1 16W*1
UV Lamp Emission of 253.7 nanometers for most efficient decontamination
Blower Built-in centrifugal blower; Speed adjustable.
Front Window 5mm toughened glass; Motorized; Height adjustable.
Power Supply AC220±10%, 60/50Hz; 110±10%, 60Hz
Consumption 400W 400W 500W 500W
Material Exterior Cold-rolled steel with anti-bacteria powder coating.
Interior High grade melamine board with good acid and alkali resistance function
Work Table Chemical resistant phenolic resin
Stand Accessory UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet
Total load of 2 waterproof sockets: 500W
4-meter PVC exhaust duct, pipe strap*2
Optional Accessory Active carbon filter
Gross Weight 286kg 317kg 350kg 400kg
Package Main Body 1190*990*1690 mm 1390*990*1690 mm 1690*990*1690mm 1990*990*1690mm
Base Cabinet 1190*990*980mm 1390*990*980mm 1690*970*970mm 1990*990*980mm
SKU: FUME006 Category: Tag:

Fume Hood Ducted Cabinet FH1800

Lead Time: 4-6 Weeks

Laboratory and Medical Fume Hood

The Special Cabinets are manufactured upon an order.

Laboratory and Medical Fume Hood with Water & Gas Remote Control

A fume hood is a type of local exhaust ventilation device that is designed to limit exposure to hazardous or toxic fumes, vapours or dusts. It’s mainly used in hospital labs, clinical trial labs, chemistry labs, university science labs, microbiology labs etc.

Fume Hood Ducted Cabinet FH1800
Advantage:
1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed: 9 levels
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure.

Technical Parameters:

Model FH1000(A) FH1200(A) FH1500(A) FH1800(A)
External Size (W*D*H) 1040*800*2200mm 1240*800*2200mm 1540*800*2200mm 1840*800*2200mm
Internal Size (W*D*H) 820*670*730mm 1020*670*730mm 1320*670*730mm 1620*670*730mm
Work Surface Height 850mm
Max Opening 520mm
Air Velocity 0.3~0.8m/s
Noise ≤68dB
Exhaust Duct PVC, Standard length: 4 meters.
Φ300mm
LED Lamp 8W*1 12W*1 16W*1 16W*1
UV Lamp Emission of 253.7 nanometers for most efficient decontamination
Blower Built-in centrifugal blower; Speed adjustable.
Front Window 5mm toughened glass; Motorized; Height adjustable.
Power Supply AC220±10%, 60/50Hz; 110±10%, 60Hz
Consumption 400W 400W 500W 500W
Material Exterior Cold-rolled steel with anti-bacteria powder coating.
Interior High grade melamine board with good acid and alkali resistance function
Work Table Chemical resistant phenolic resin
Stand Accessory UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet
Total load of 2 waterproof sockets: 500W
4-meter PVC exhaust duct, pipe strap*2
Optional Accessory Active carbon filter
Gross Weight 286kg 317kg 350kg 400kg
Package Main Body 1190*990*1690 mm 1390*990*1690 mm 1690*990*1690mm 1990*990*1690mm
Base Cabinet 1190*990*980mm 1390*990*980mm 1690*970*970mm 1990*990*980mm
