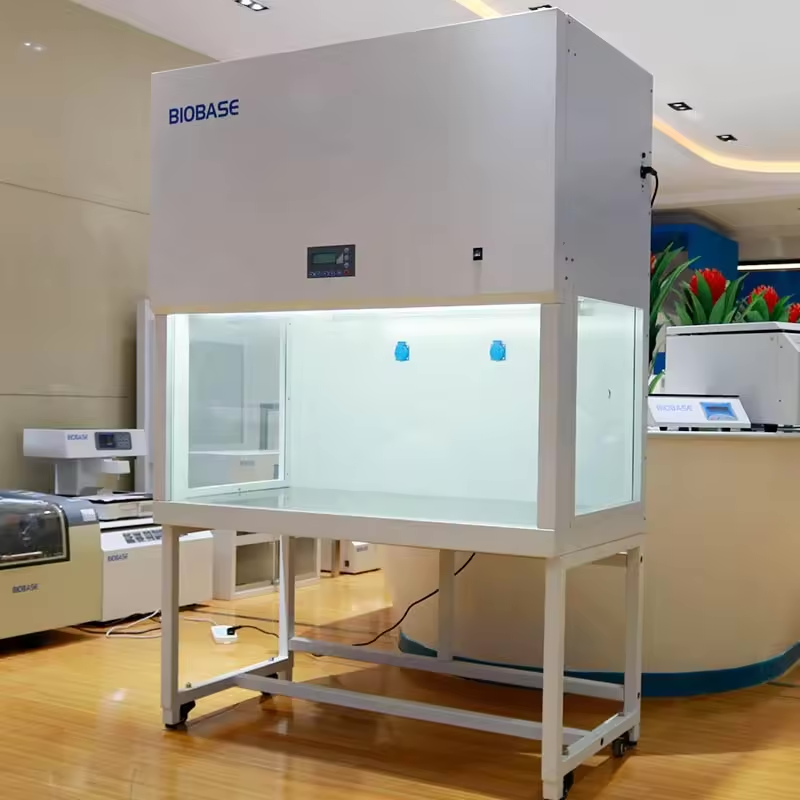

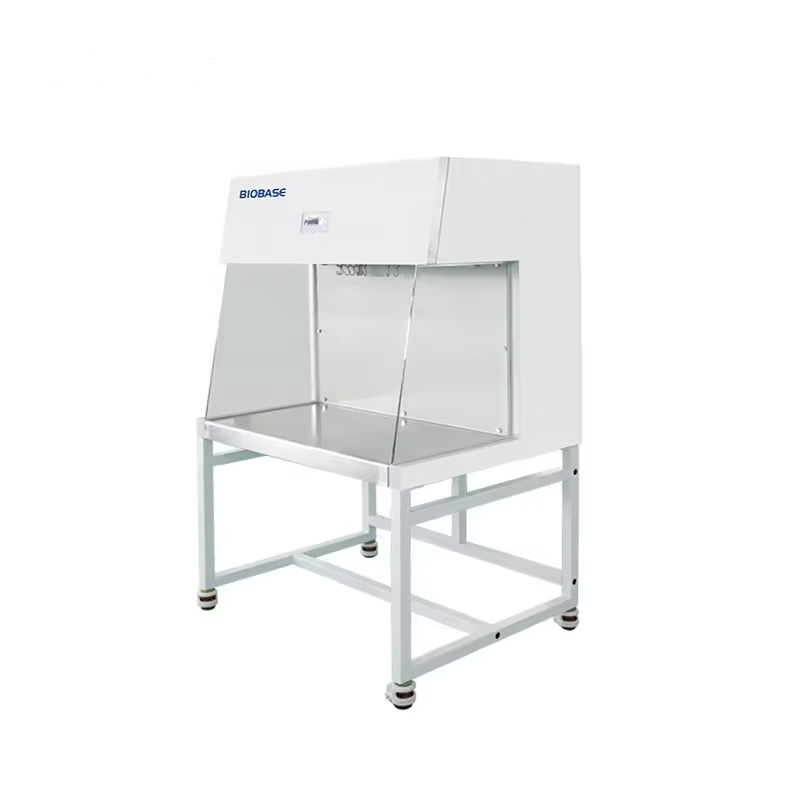

Laminar Flow Hood Horizontal
R64 442,00
Laminar Flow Hood Horizontal
Lead Time: 4-6 Weeks
Horizontal laminar flow hoods create a sterile, particle-free workspace by pushing HEPA-filtered air horizontally across the work surface, protecting sensitive products from contamination in fields like pharmaceuticals, electronics assembly, medical device manufacturing, and microbiology (cell culture, media prep), ideal for non-hazardous tasks where sample purity is key, as they shield the product, not the user.
Laminar Flow Hood Horizontal
Horizontal laminar flow hood designs provide airflow that is parallel to the work surface for less turbulence.
Horizontal flow hoods also allow for sterile materials laying on the work surface to be positioned closer to the filter face (upstream from other potential contaminants).
- Laminar Flow Cabinet Horizontal is mainly used in general laboratories and hospital labs.
| Model | BBS-H1100 (Previous name: BBS-DDS) |
BBS-H1500 (Previous name: BBS-SDS) |
BBS-H1800(X) |
| External Size（W*D*H） | 1100*808*1690mm | 1500*808*1690mm | 1800*808*1890mm |
| Internal Size（W*D*H） | 1000*500*600mm | 1400*500*600mm | 1700*500*800mm |
| Work Surface Height | 750mm | ||
| Display | LCD Display | ||
| Airflow Velocity | Average of 0.30~0.45m/s | ||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||
| Work Table: 304 stainless steel | |||
| Side Windows: 8mm toughened glass, anti-UV | |||
| Pre-filter | Polyester fiber, washable | ||
| HEPA Filter | 99.999% efficiency at 0.3μm | ||
| Noise | <65dB(A) | ||
| LED Lamp | 12W*1 | 16W*1 | 16W*2 |
| UV Lamp | 18W*1 | 30W*1 | 18W*2 |
| Emission of 253.7 nanometers | |||
| Consumption | 200W | 300W | 400W |
| Waterproof Socket | Two, total load≤500W | ||
| Caster | Universal caster with leveling feet | ||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
| Standard Accessory | LED lamp; UV lamp*2; Base stand; Waterproof socket*2; Hook*10 |
||
| Optional Accessory | Electric height adjustable base stand | ||
| Gross Weight | 175kg | 216kg | 255kg |
| Package Size（W*D*H） | 1250*1050*1350mm | 1650*1050*1350mm | 1950*1050*1550mm |
Laminar Flow Hood Horizontal
Laminar Flow Hood Horizontal
Lead Time: 4-6 Weeks
Horizontal laminar flow hoods create a sterile, particle-free workspace by pushing HEPA-filtered air horizontally across the work surface, protecting sensitive products from contamination in fields like pharmaceuticals, electronics assembly, medical device manufacturing, and microbiology (cell culture, media prep), ideal for non-hazardous tasks where sample purity is key, as they shield the product, not the user.
Laminar Flow Hood Horizontal
Horizontal laminar flow hood designs provide airflow that is parallel to the work surface for less turbulence.
Horizontal flow hoods also allow for sterile materials laying on the work surface to be positioned closer to the filter face (upstream from other potential contaminants).
- Laminar Flow Cabinet Horizontal is mainly used in general laboratories and hospital labs.
| Model | BBS-H1100 (Previous name: BBS-DDS) |
BBS-H1500 (Previous name: BBS-SDS) |
BBS-H1800(X) |
| External Size（W*D*H） | 1100*808*1690mm | 1500*808*1690mm | 1800*808*1890mm |
| Internal Size（W*D*H） | 1000*500*600mm | 1400*500*600mm | 1700*500*800mm |
| Work Surface Height | 750mm | ||
| Display | LCD Display | ||
| Airflow Velocity | Average of 0.30~0.45m/s | ||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||
| Work Table: 304 stainless steel | |||
| Side Windows: 8mm toughened glass, anti-UV | |||
| Pre-filter | Polyester fiber, washable | ||
| HEPA Filter | 99.999% efficiency at 0.3μm | ||
| Noise | <65dB(A) | ||
| LED Lamp | 12W*1 | 16W*1 | 16W*2 |
| UV Lamp | 18W*1 | 30W*1 | 18W*2 |
| Emission of 253.7 nanometers | |||
| Consumption | 200W | 300W | 400W |
| Waterproof Socket | Two, total load≤500W | ||
| Caster | Universal caster with leveling feet | ||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
| Standard Accessory | LED lamp; UV lamp*2; Base stand; Waterproof socket*2; Hook*10 |
||
| Optional Accessory | Electric height adjustable base stand | ||
| Gross Weight | 175kg | 216kg | 255kg |
| Package Size（W*D*H） | 1250*1050*1350mm | 1650*1050*1350mm | 1950*1050*1550mm |
Laminar Flow Hood Horizontal
