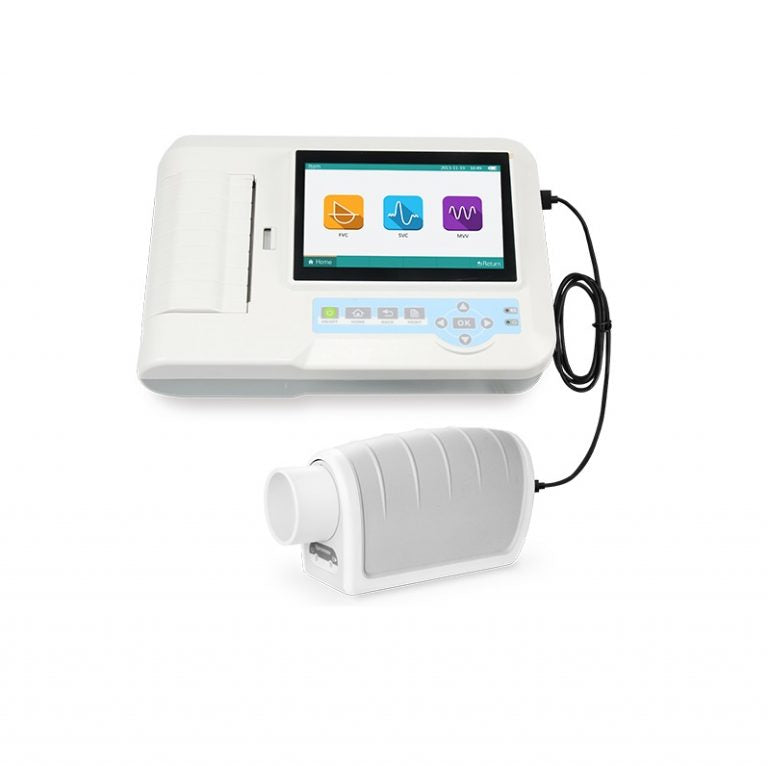

Contec Spirometer – SP100

SP100 Spirometer is a portable lung function testing device, which mainly used to examine lung function related parameters for patients. It can be applied to various environments such as hospitals, clinicals, etc. And it is also suitable for communities, schools, factories and other places to conduct epidemiological investigation, health examination, occupational, disease screenings.

SPECIFICATIONS:

• Measurement of forced vital capacity (FVC)
• Vital Capacity (VC/SVCI) maximum voluntary ventilation (MVV) and relevant functions, more than 30 parameters can be measured and displayed, for several times of measurements the optimal result will be displayed, the condition of subject can be shown by the ratio of the measured value and the predicted value.
• Measurement parameters: Forced Vital Capacity (FVC), FVC, FEV1, PEF, FEV1%, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6,ELA, FET, EVOL.FIVC, FIV1, FIV1,FIVC,PIF,MVV
• Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC,TV, VE, RR, tl, tE, TV/tl, tl/ttot
• Maximum Ventilatory Volume (MVV):MVV
• Real – time display respiration waveform: Flow-Volume loop and Volume-Time curve chart;
• 7″ colour LCD touch screen, buttons can be operated along with touch screen;
• Incentive animation operation guide, easy for use between children and the old;
• Built-in thermal printer, reports can be printed directly;
• BTPS automatic correction function, compensate for the impact of environmental differences;
• Test Time and environment temperature display;
• Calibration function, ensure measurement accuracy;
• Multiple predicted value can be selected, suitable for different population;
• Storage of more than 10,000 groups of data;
• Lung age estimation function;
• Built-in lithium battery, supports both AC and DC

PERFORMANCE:

• Volume range : +/- 10 L
• Volume accuracy: +/-3% or +/-0.05 L (whichever is greater)
• Flow Range: +/- 16L/s
• Flow accuracy: +/-5% or +/- 0.2L/s (whichever is greater)
• Power supply: 100V-240V – 50/60Hz
• Input Power: 60 VA
• Safety type: Class I equipment, type BF applied part
• LCD screen: 7″ colour TFT touch screen
• Printing paper: 112 mm(W) x 20m(L) high-speed thermal paper.

ACCESSORIES:

• Spirometer 1pc
• Mouthpiece 4pcs
• Nose clip 1pc
• Recording paper 1pc
• Power cord 1pc
• User Manual 1pc
• Dimension: 315mm(L) x 215 mm (W) x 92 mm (H)
• Weight: 1.8kg

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
