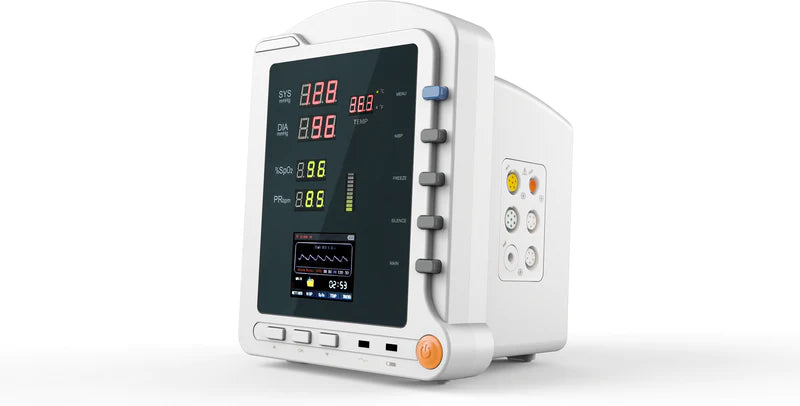

CONTEC CMS5100 Patient Monitor

Description:

CMS5100 Patient Monitor is a feature-rich monitoring device that can be applied to adults, paediatric and neonate. User can choose different measurement parameters according to different needs. The patient monitor can monitor NIBP, SpO2, PR and TEMP. It integrates the function of parameter measuring and displaying into a compact, lightweight patient monitor, which is suitable for all levels of hospitals, community medical and home use.

Features:

• Be applicable for NIBP, SpO2 and TEMP monitoring of adult, paediatric and neonate of all ages, easy to operate, high cost-effective;
• Be applicable for medicine, surgery, operating room, ICU/CCU, emergency room, obstetrics and gynaecology, paediatrics;
• Compact and flexible appearance, easy for carrying and suitable for indoor and outdoor (in ambulance) monitoring;
• Built-in rechargeable lithium polymer battery, ensures uninterrupted monitoring;
• Perfect menu design, user-friendly interface;
• Display the measurement result of SYS, DIA, SpO2, PR and bar graph by the display screen of high-brightness digital tube;
• 2.8” (320×240) true colour TFT LCD screen, displays the information of TEMP data, time, SpO2 Plethysmogram, alarm condition, trend graph, list and system settings, etc.;
• Visual and audible alarm for SYS, DIA, MAP, SpO2, PR and TEMP, and upper and lower limit of alarm can be set as necessary;
• Independent non-volatile memory, storage for up to 2,000 groups of NIBP data, 7900 groups of TEMP data and 78,000 groups of SpO2 data;
• Convenient and quick in reviewing measurement data, available for reviewing the NIBP trend graph of 24 hours, TEMP data of 24 hours and SpO2 trend graph of 22 hours.

Performance:

NIBP:

• Using Oscillometry technology(also called Oscillography technology) to measure the blood pressure.
• Measurement mode: manual/auto/continuous
• Measurement interval in auto mode: 1, 2, 3, 4, 5, 5×n(n=2, 3,4…51) min.
• Resolution: 1 mmHg
• Accuracy: max mean error: ±5 mmHg; max standard deviation: 8 mmHg.
• Overpressure protection: dual protection for both software and hardware
• Others: reset, self-testing and accuracy testing of static pressure

Measurement range:

Adult:

• SYS 40 mmHg~270 mmHg
• DIA 10 mmHg~215 mmHg

Paediatric:

• SYS 40 mmHg~200 mmHg
• DIA 10 mmHg~150 mmHg

Neonate:

• SYS 40 mmHg~135 mmHg
• DIA 10 mmHg~100 mmHg

SpO2

• Using Photoelectric Oxyhaemoglobin Inspection Technology combined with Capacity Pulse Scanning & Recording Technology to measure the SpO2.
• Measurement range: 0 %~100 %
• Alarm range: 0 %~100 %
• Resolution: 1 %
• Accuracy: 70 %~100 %, ±2 %; below 70 % unspecified.

PR

• Using Photoelectric Oxyhaemoglobin Inspection Technology combined with Capacity Pulse Scanning & Recording Technology to measure the pulse rate.
• Measurement range: 25 bpm~250 bpm
• Alarm range: 25 bpm~250 bpm
• Resolution: 1 bpm
• Accuracy: ±2 bpm or ±2 %, whichever is greater

TEMP

• Using thermal resistor method to measure body surface temperature or body cavity temperature in an accurate, safe and convenient way.
• Measurement range: 0 ℃~50 ℃
• Alarm range: 0 ℃~50 ℃
• Resolution: 0.1 ℃
• Accuracy: ±0.1 ℃

Safety and Power supply:

• Power supply: rated voltage: ~220 V, rated power: 50 Hz
• Safety classification: Class I equipment, type BF defibrillation-proof applied part

Accessories:

• One User Manual
• One power cord
• One SpO2 sensor
• One adult NIBP cuff
• One NIBP extension tube
• One TEMP probe

Specifications:

• Dimension: 190 mm(L)×162 mm(W)×240 mm(H)
• Weight: about 1.6 kg

Additional Information:

The unit comes ready to use for an adult. It comes with an adult probe 1 piece, 1 adult cuff. If you need to use it on the peads and children you will need to purchase the cuffs, 2 piece finger probe, extension cable and cuffs. Optional Extras Sold Seperately: Click on the images below

Optional Extras Sold Seperately: Click on the images below

Contec Patient Monitor Cuff Paediatric, Child, Adult, Obese

This is a PM5000T Patient monitor trolley for the CMS model: 5000, 6000, 8000

• Sturdy mobile trolley with adjustable height.
• Platform Plate drilled to take Many brands of monitor.

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks
