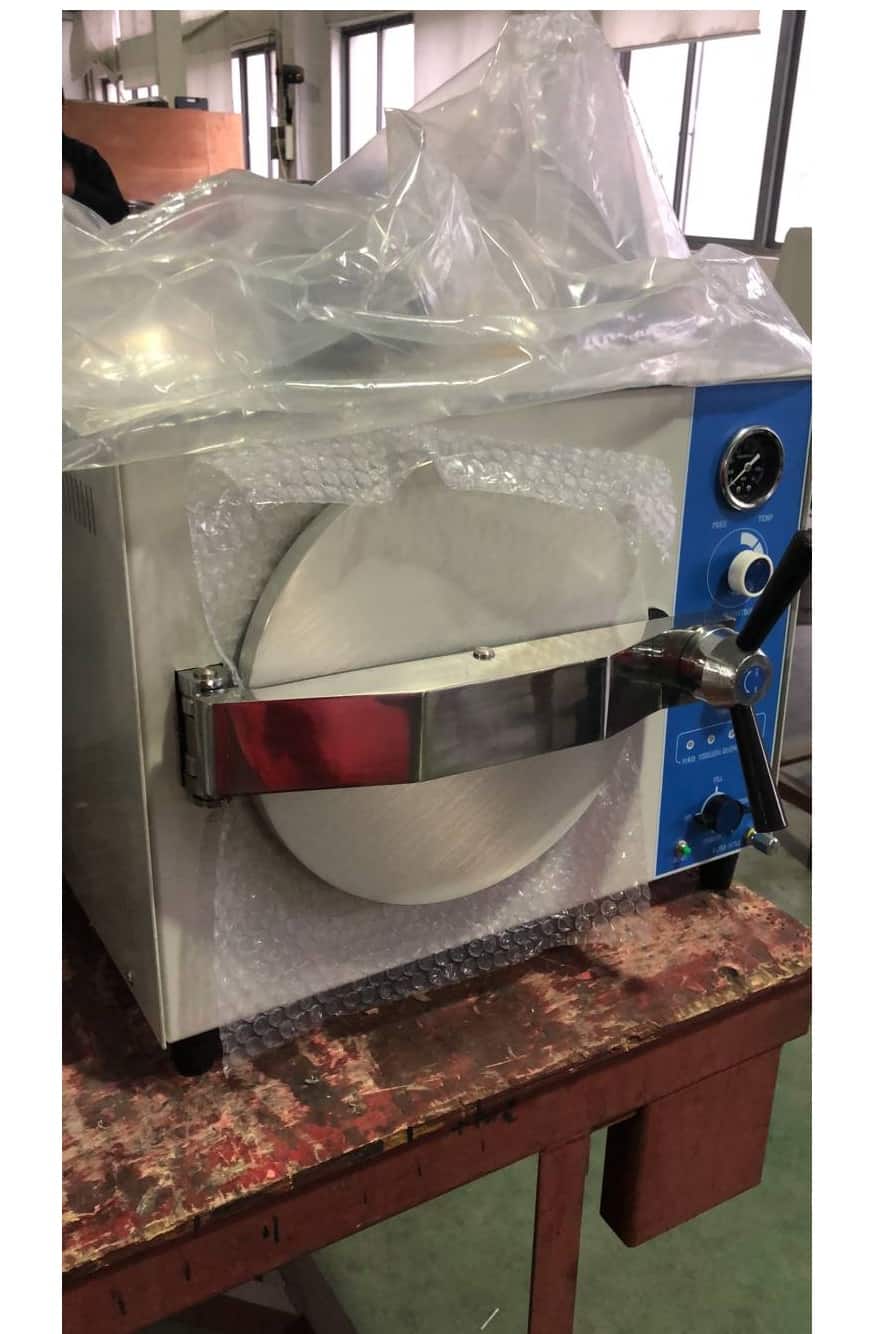

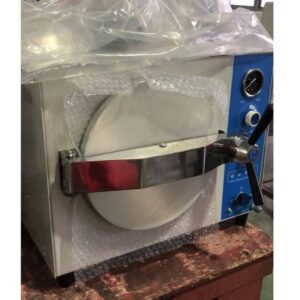

20L desktop autoclave steam sterilizer dental sterilizer machine

20L desktop autoclave steam sterilizer dental sterilizer machine

.Product Application

The sterilizer is a table type in safety and auto-controlled,which is designed for the unit of medical health,pharmacy,science and technology etc. And mostly suitable for sterilizing of surgical,dental and eye instruments,glassware medicine,culture medium and biological dressing,food and other goods.

Characteristics

1)Indicator light indicates working state
2)For 4~6 minutes rapidly sterilizing
3)Sterilizing temperature and time can be preset
4)Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry
5)Over temperature&over pressure auto-protection
6)Safe protection of water lacking
7)Exhaust the cool air automatically

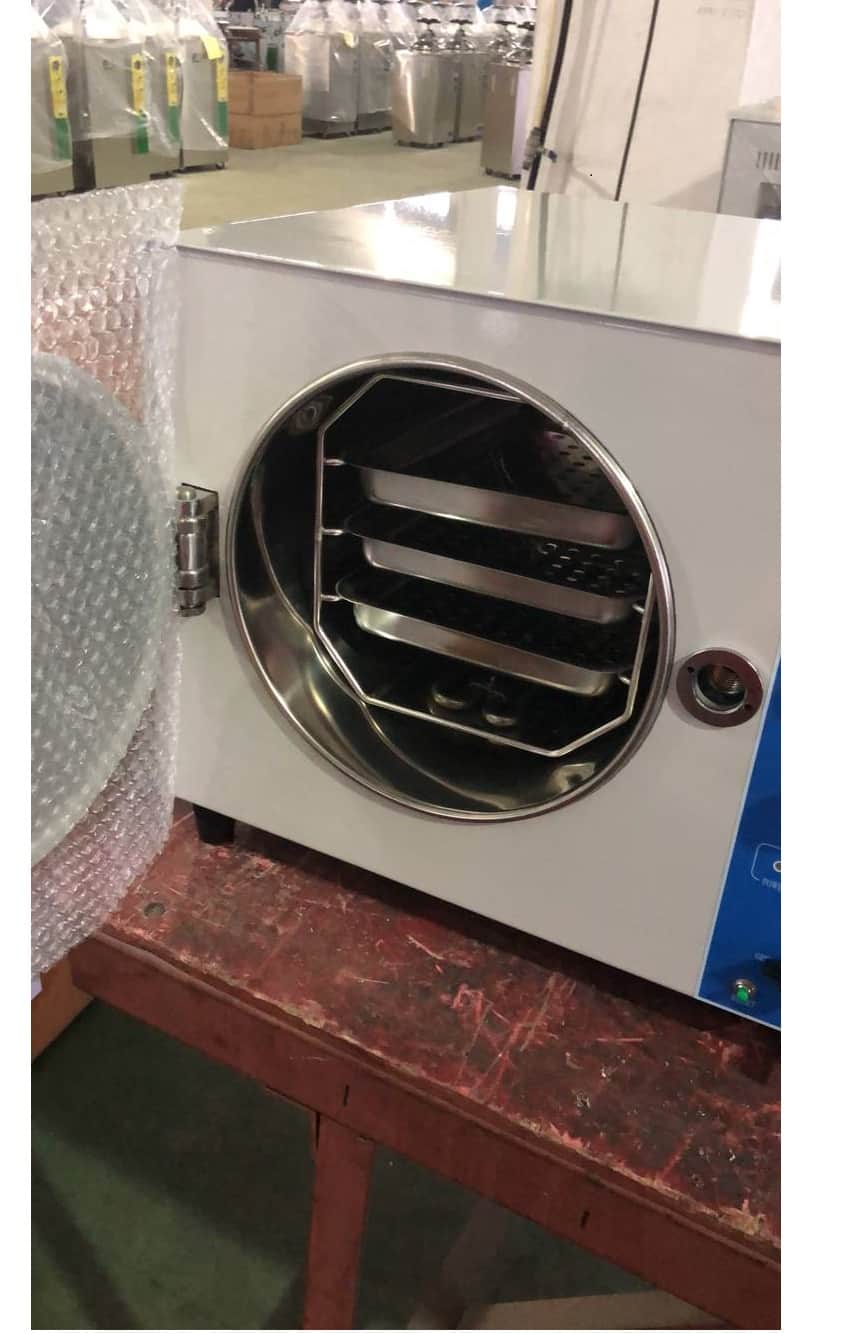

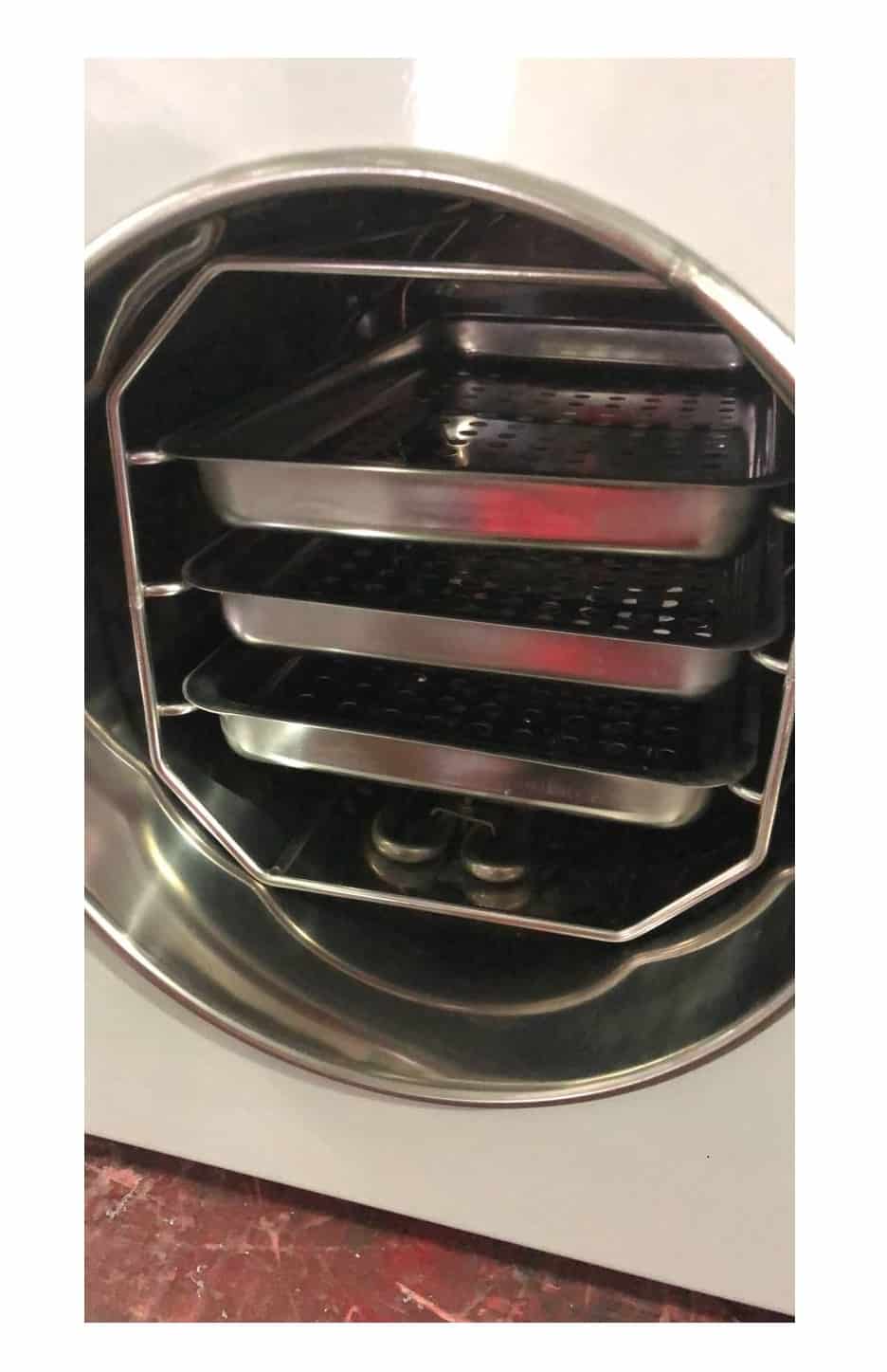

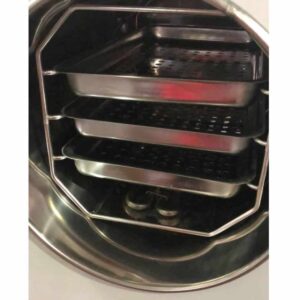

8)With three stainless steel sterilizing plates
9)The chamber of the sterilizer is made of stainless steel
10)Automatically shut off with beep reminding after sterilization

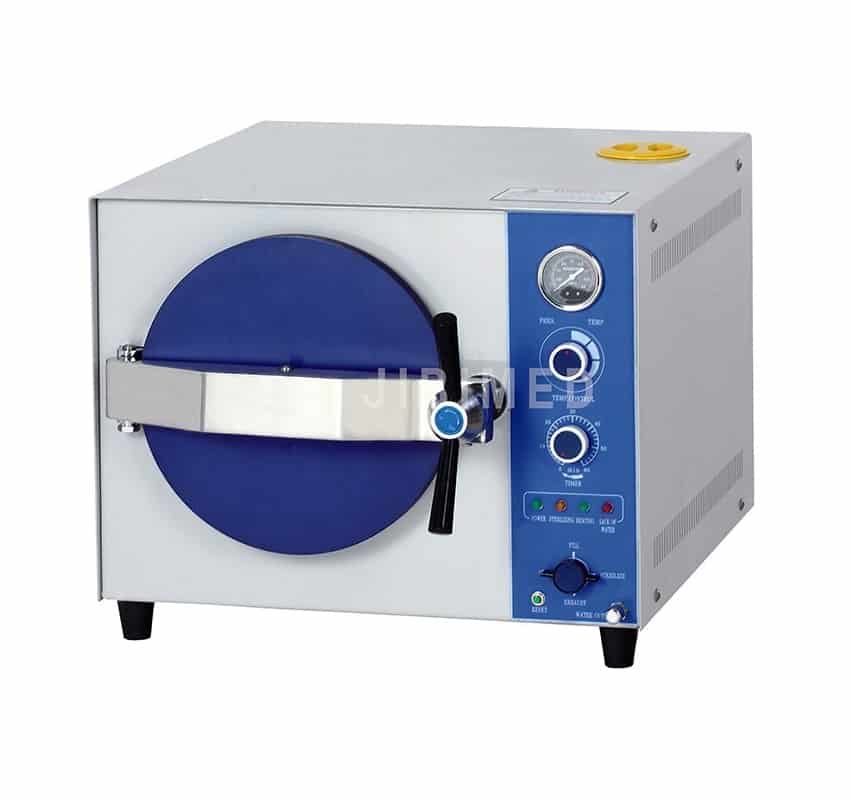

Table Top Steam Sterilizer

Technical Data

• Model: TM-XB20J TM-XB24J
• Sterilizing Volume: 20L φ250*420mm 24L φ250*520mm
• Working Pressure: 0.22Mpa
• Working Temperature: 134℃
• Adjustment of temperature: 105~134℃
• Timer: 0~66min
• Heat average: ≤±1℃
• Power: 1.5Kw/AC220V.50HZ
• Sterilizing plate: 340*200*30mm (3 pieces) 400*200*30mm (3 pieces)
• Dimension: 480*480*384mm 580*480*384mm
• Exterior package dimension: 700*580*500mm 800*580*500mm
• G.W/N.W: 44KG/40KG 50KG/45KG
