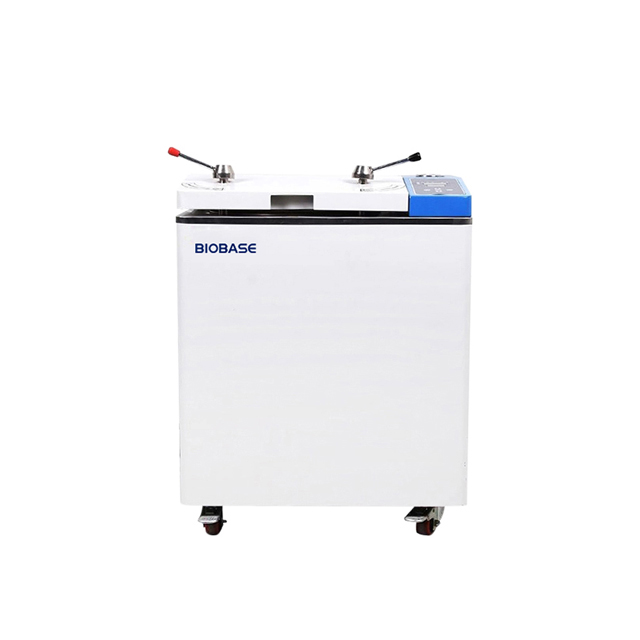

Vertical Autoclave Model BKQ-Z100

Vertical Autoclave Model BKQ-Z100

Vertical Autoclave Model BKQ-Z100

Safety Features:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will stop heating automatically and start alarm.

4. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.

5. Over current, over voltage or electric leakage protection apparatus-air switch.

Technical Features:

1. Complete protection system.

2. Flip-open door structure with spring booster, easy to open.

3. LED displays inner temperature, time and error codes.

4. Automatic exhausting steam function.

5. Reliable mechanical safety interlock feature.

6. External material: Cold rolled steel with anti-bacteria powder coating.

7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.

8. Door cover is wrapped completely, to prevent scald effectively.

9. Radial self-expanding silicone rubber seals with high effect and long using life.

10. Optional printer for recording sterilization data.

11.Optional stainless stee bucket

• Model: BKQ-Z30I BKQ-Z50I BKQ-Z75I BKQ-Z100I
• Capacity: 30L 50L 75L 100L
• Chamber size(mm): φ385*412 φ385*515 φ385*715 φ385*915
• ChamberMaterial: SUS304
• MaxPressure: 0.3MPa
• RatedWorkingPressure: 0.22MPa
• MaxTemperature: 150℃
• WorkingTempRange: 105～134℃
• Temp.Display Accuracy: ±0.1℃
• TimingRange: 0-999min
• DynamicPulseExhaustTime: 0~9times
• WaterRequirement: Distilled water or demineralized water
• Standard Accessories: SS basket*1pcs, SS tray*1pcs SS basket*2pcs, SS tray*1pcs
• Consumption: 4KW
• PowerSupply: AC110/220V±10%, 50/60Hz
• External Size(W*D*H)mm: 645*610*710 645*610*850 645*610*1000 645*610*1200
• Packing Size(W*D*H)mm: 750*745*950 750*745*1100 750*745*1240 750*745*1450
• GrossWeight(kg): 100 103 114 122

Note: It is applicable to the altitude below 3,500m
