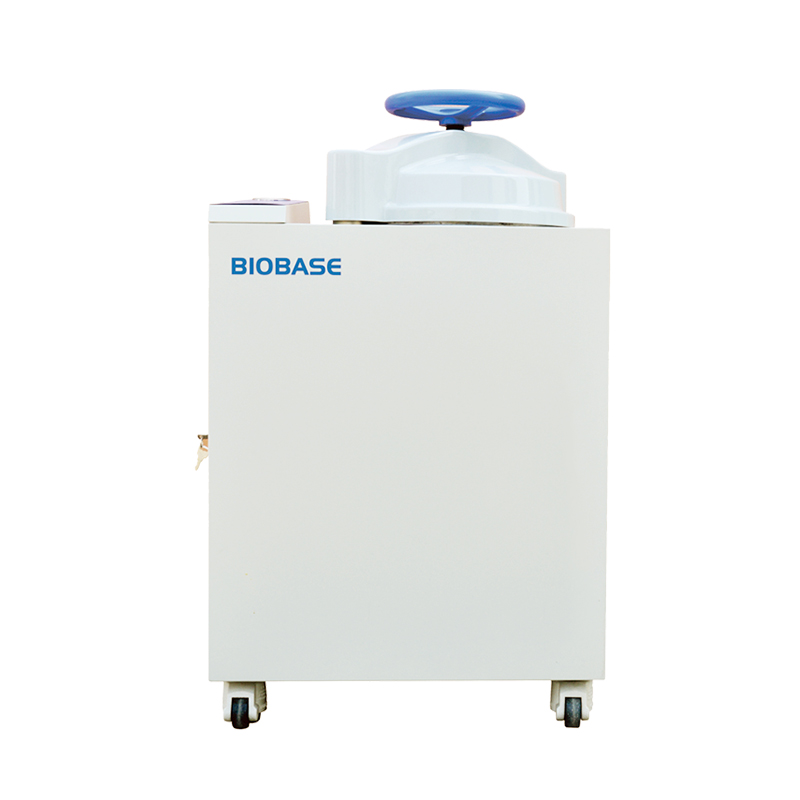

Vertical Autoclave Model BKQ-B50

Vertical Autoclave Model BKQ-B50

Features:

* Standard built-in printer.

* Deionized water interface for supplying steam generator.

* Rapid water cooling system for efficient and safe sterilization of liquids.

* With a quick maintenance window, the electrical parts can be repaired without removing the cover.

* Microcomputer control. Fully automatic control water injection, temperature rise, sterilization, exhaust and dry.

* LCD screen display shows pressure, temperature, time and error codes and operation curve etc.

* Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect

of liquid program.

• Model: BKQ-B50L BKQ-B75L
• Capacity: 50L 75L
• Chamber Size(mm): φ386*490 φ386*670
• Chamber Material: SUS304
• Max Designed Pressure: 0.28MPa
• Max Designed Temp: 150℃
• Working Pressure: 0.22MPa
• Working temp.: 80℃-136℃
• Temp. Accuracy: 0.1℃
• Noise: ≤65dB
• Power consumption: 5.5KW
• Power Supply: AC110/220V±10%,50/60Hz
• External Size(W*D*H)mm: 700*610*1100
• Packing size(W*D*H)mm: 800*715*1270
• Net Weight(kg): 140 147
