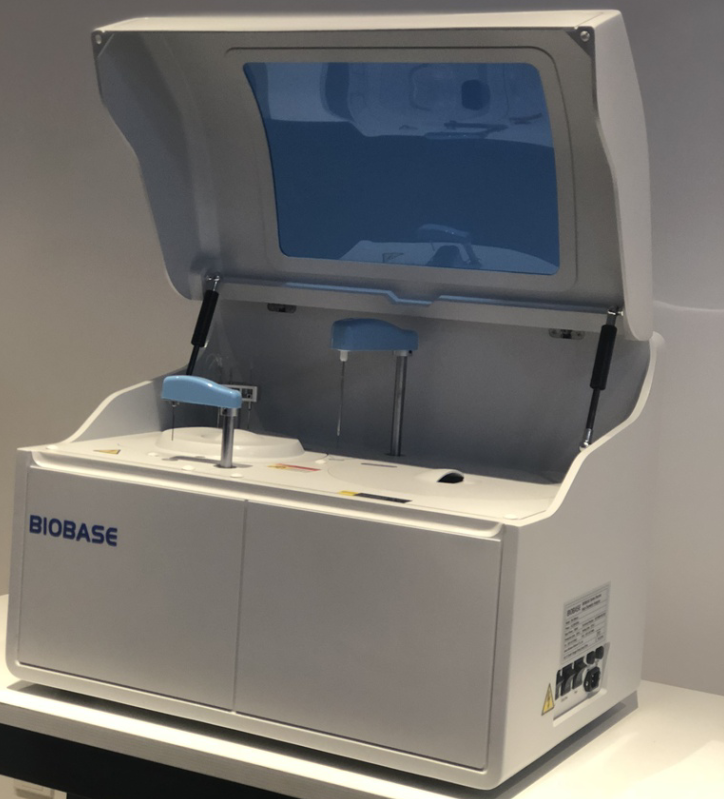

Clinical Blood Chemistry Analyser

Laboratory Equipment Biochemistry Analyzer Lab Clinical Blood Chemistry Analyser
**Lead Time: 4-6 Weeks**
Lead Time: 4-6 Weeks
• Overall Performance: {‘Model’: ‘BK-200mini’, ‘Throughput’: ‘200 Tests/hour’, ‘Analysis Method’: ‘End-point, Fixed-time, Rate(Kinetic)’}
• Sample & Reagent System: {‘Sample Positions’: ’37 sample positions’, ‘Reagent Position’: ’28 reagent positions’, ‘Sample Volume’: ‘2~70μL’, ‘Reagent Volume’: ’20~350μL’, ‘Probe’: ‘Liquid level sensor function, anti-collision function.’, ‘Probe Washing’: ‘Automatic washing interior and exterior’, ‘Reagent Cooling’: ‘Refrigerated tray with independent switch’}
• Reaction System: {‘Temperature Control’: ’37 _+_ 0.1℃, real-time monitoring’, ‘Cuvettes’: ’48 reusable cuvettes,optical length 6mm’, ‘Mixer Probe’: ‘Independent stirring’, ‘Washing’: ‘Automatic cuvettes washing’, ‘STAT function’: ‘YES’}
• Optical System: {‘Light Source’: ‘6V/10W halogen lamp’, ‘Spectrophotometry’: ‘Post-spectral spectrophotometry’, ‘Wavelength’: ‘340,405,450,510,546,578,630,700nm’, ‘Absorbance’: ‘0~3.0Abs’}
• Calibration & QC: {‘Calibration’: ‘Linear:K factor, 1-point ,2-point and multipoint liner
Non-Linear: Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P’, ‘Quality Control’: ‘Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)’}
• Data Management: {‘Software’: ‘Windows 7/8/10 , 32or 64bit’, ‘LIS System’: ‘Bi-direction,support HL7 protocol’, ‘Interface’: ‘LAN port access’, ‘Printer’: ‘External,multiple reporting mode available’}
• Working Conditions: {‘Power Supply’: ‘AC220V _+_ 10%,50/60Hz, 110V _+_ 10%,60Hz, 300W’, ‘Temperature’: ’10℃~30℃’, ‘Water Consumption’: ‘Deionized water:3L/H’, ‘Humidity’: ’30-80%’}
• Size & Weight: {‘Size (W*D*H)’: ‘625*425*460mm’, ‘Net Weight’: ’36kg’, ‘Package Size (W*D*H)’: ‘720*535*740mm’, ‘Gross Weight’: ’50kg’}

• Throughput: 200 Tests/hour
• Analysis Method: End-point, Fixed-time, Rate(Kinetic)
• Sample Positions: 37
• Reagent Position: 28
• Sample Volume: 2~70μL
• Reagent Volume: 20~350μL
• Probe: Liquid level sensor function, anti-collision function.
• Probe Washing: Automatic washing interior and exterior
• Reagent Cooling: Refrigerated tray with independent switch
• Temperature Control: 37 _+_ 0.1℃, real-time monitoring
• Cuvettes: 48 reusable cuvettes,optical length 6mm
• Mixer Probe: Independent stirring
• Washing: Automatic cuvettes washing
• STAT function: YES
• Light Source: 6V/10W halogen lamp
• Spectrophotometry: Post-spectral spectrophotometry
• Wavelength: 340,405,450,510,546,578,630,700nm
• Absorbance: 0~3.0Abs
• Calibration: Linear:K factor, 1-point ,2-point and multipoint liner
Non-Linear: Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P
• Quality Control: Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
• Software: Windows 7/8/10 , 32or 64bit
• LIS System: Bi-direction,support HL7 protocol
• Interface: LAN port access
• Printer: External,multiple reporting mode available
• Power Supply: AC220V _+_ 10%,50/60Hz, 110V _+_ 10%,60Hz, 300W
• Temperature: 10℃~30℃
• Water Consumption: Deionized water:3L/H
• Humidity: 30-80%
• Size (W*D*H): 625*425*460mm
• Net Weight: 36kg
• Package Size (W*D*H): 720*535*740mm
• Gross Weight: 50kg
