Table type Low Speed Lab Clinical Centrifuge

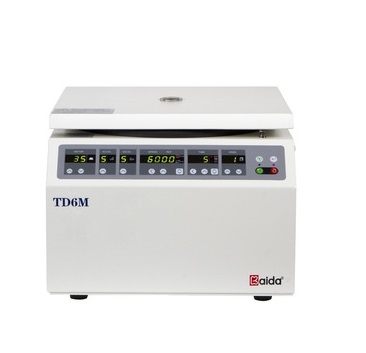

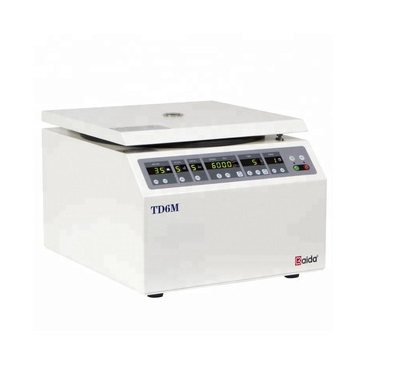

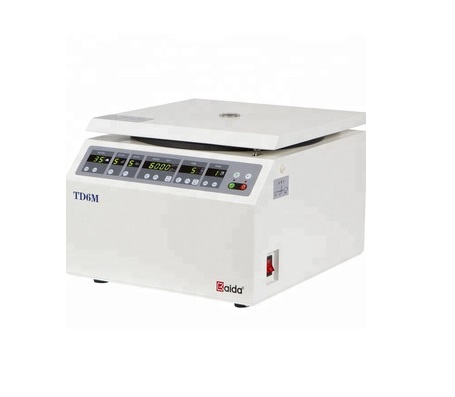

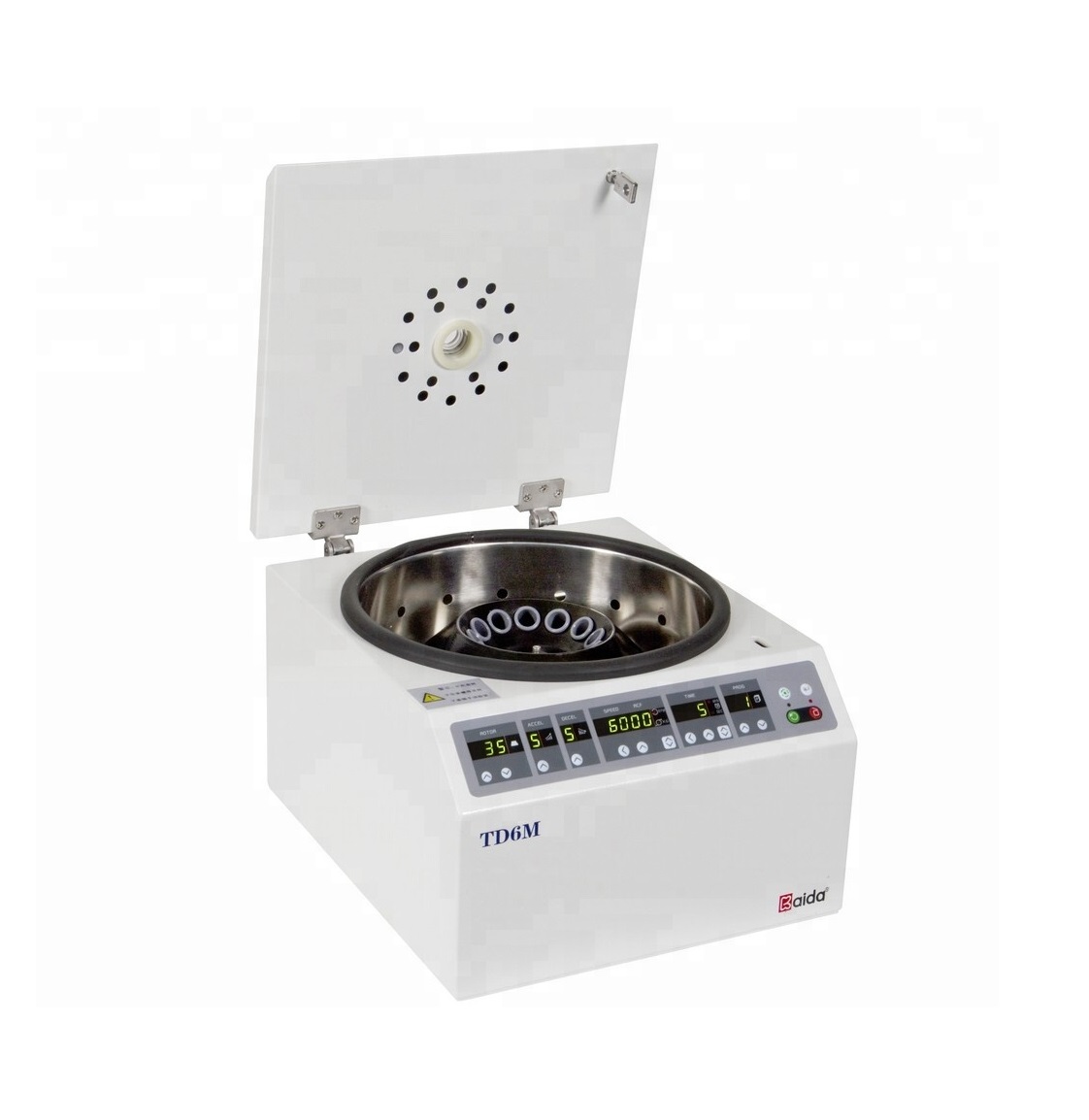

TD6M Clinical low speed centrifuge 6000 rpm

Features:

1. With brushless DC motor, maintenance-free
2. Controlled by MCU with a touching panel and digital display, easy to operate.
3. Steel body, stainless steel centrifugal chamber, resist corrosion, easy to clean, safe and stable.
4. Arbitrarily setting the parameter of time and speed etc, easy to use.
5. It’s mainly used in biochemistry Laboratory and Clinical Laboratory in Hospital

low speed centrifuge

TECHNICAL PARAMETER

• Model: TD6M
• Max Speed: 6000r/min
• Max RCF: 5120xg
• Capacity: 12×15/6x30ml
• Time Range: 0~99min
• Speed Accuracy: ±50r/min
• Noise: ≤62db
• Power Supply: AC 220V 50Hz 8A
• Dimension: 340×400×270(mm)
• Weight: 20kg

ROTOR

ROTOR OPTIONS:

• Rotor Type: Rotor Number Capacity Max Speed (r/min) Max RCF (×g) The dimension of Tube (mm)
• Fixed-Angle Rotor: No. 38 4×50ml 6000 5120 Φ38×124
• No. 38: 6×50ml 6000 5120 Φ38×124
• No. 37: 12×10ml 6000 5120 Φ16×82
• No. 37: 12×15ml 6000 5120 Φ16×115
