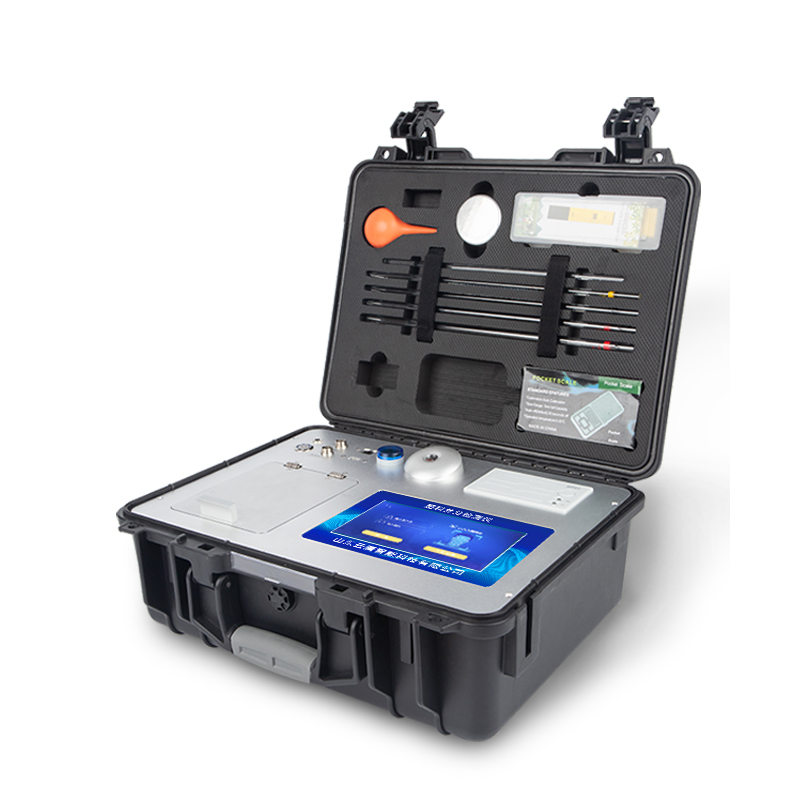

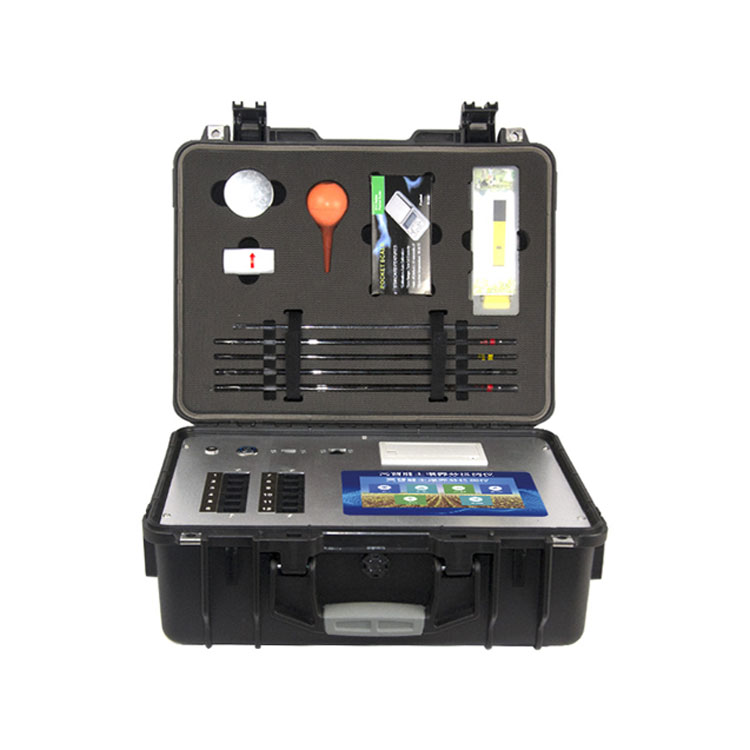

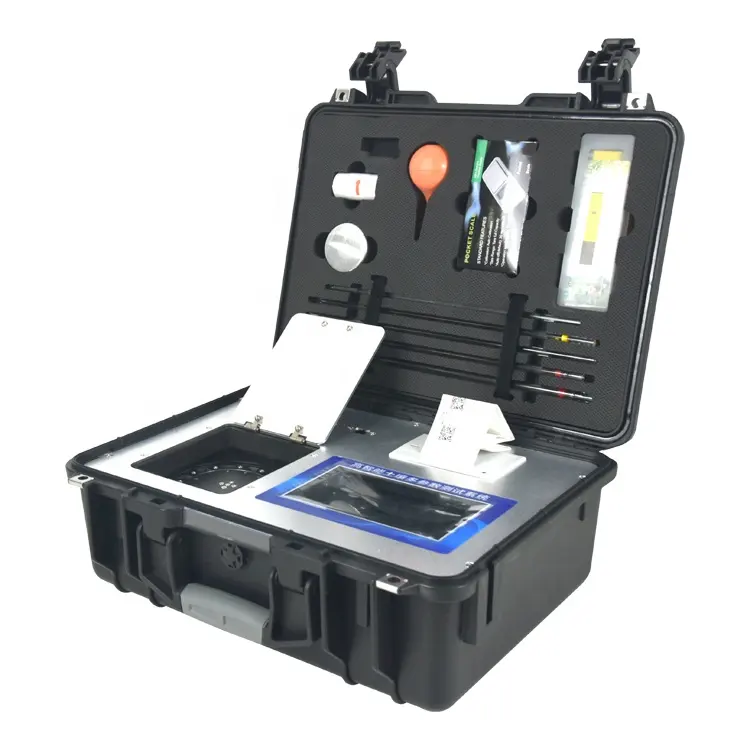

- Soil Nutrient Analyser GT
- Soil Nutrient Analyser provides real-time information on soil nutrient levels.
- farmers can make informed decisions about fertiliser application
- It helps to optimise resource utilisation, and maximising crop yields.
Lead Time: 2-4 Weeks
- Soil Nutrient Analyser GT
| Instrument Model | GT1 | GT2 | GT3 | GT4 | GT5 |
| Test items | Soil NPK Organic matter Soil testing formula |
Soil NPK Organic matter Trace elements Soil testing formula |
Soil/Fertilizer/Plant/Crop NPK Organic matter Trace elements Soil testing formula |
Soil/Fertilizer/Plant/Crop NPK Organic matter Trace elements Heavy metal Soil testing formula |
Soil/fertilizer/plant/crop NPK, organic matter, trace elements, heavy metals, soil testing formula, three-parameter sensor + multi-element sensor |
| Number of channels | 6 channels | 12 channels | Rotating colorimetric 8 channels | Rotating colorimetric 12 channels | Rotating colorimetric 12 channels |
| Fertilization system | Built-in soil testing formula fertilization system | ||||
| Atlas diagnosis | Built-in plant nutrition diagnostic standard map | ||||
| Repeatability error | ≤0.03% | ≤0.03% | ≤0.02% | ≤0.02% | ≤0.02% |
| Linearity error | ≤0.1%(0.001,Copper sulfate detection) | ||||
| Power supply | AC 220±22V DC 12V+5V (The built-in lithium battery of the instrument can also be used as a vehicle power supply) | ||||
| Sensitivity | Red light≥4.5×10-5 Blue light≥3.17×10-3 Green light≥2.35×10-3 Orange light≥2.13×10-3 | ||||
| Wavelength range | Red light: 680±2nm; Blue light: 420±2nm; Green light: 510±2nm; Orange light: 590±4nm | ||||
| PH value | (1) Test range: 1~14 (2) Accuracy: 0.01 (3) Error: ±0.1 | ||||
| Salt content | (1) Test range: 0.01%~1.00% (2) Relative error: ±5% | ||||
| Master chip | ARM Cortex-A7,RK3288/4-core processor | ||||
| Instrument size | 48cm*34.5cm*22cm |
- Soil Nutrient Analyser
