Name: Soil Analyser pH, Temp, EC, Meter 7 in 1
SKU: RS-TRREC-N01-1
Availability: InStock

Soil Analyser pH, Temp, EC, Meter 7 in 1

Lead Time: 2-3 Weeks

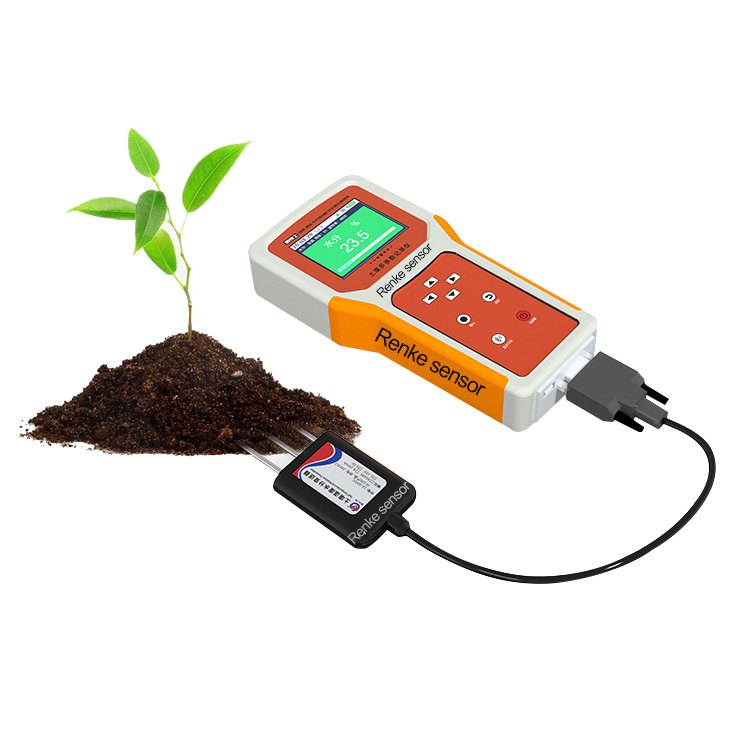

RS-TRREC-N01-1 soil analyzer adopts the latest digital integrated circuit technology and international testing technology to design a brand new intelligent handheld tester.
The recorder uses a large-size full-color LCD display that can display the readings in real time.

At the same time, it uses the detection circuit designed by the digital chip of an international manufacturer, which can achieve very high sensitivity and excellent repeatability.

and the recorder is integrated Storage, recording, and analysis are integrated
and handheld soil analyzer can be flexibly connected to the company’s soil nitrogen, phosphorus and potassium sensors, soil electrical conductivity, soil temperature and humidity and other equipment to realize the measurement of various soil parameters.

Handheld Terminal

Soil Analyser pH, Temp, EC, Meter 7 in 1

Power supply	Battery powered (5000mAh lithium battery)
Display	2.8 inch LCD display
Data storage	1 million data
Charging time	≤8h
Communication mode	USB(read,see DB9 interface for details information)
Working environment	Temp: -10℃-50℃; humidity: Less than 95%RH without condensation
Accessible equipment	1-4 ModBus device combination
Letter of agreement	Modbus-RTU protocol
Operating Voltage	DC 4.2V
Standby time	More than 8h continuous
Size	20910036 mm
Weight	500g

Soil Temp+Humidi+EC Sensor

Power supply	DC3.6-30V
Conductivity parameter	Range: 0-20000us/cm Resolution: 10us/cm within 0-10000us/cm; 50us/cm within 100000-20000us/cm Accuracy: ±3% in the range of 0-10000 us/cm; ±5% in the range of 10000-20000 us/cm
Soil moisture parameter	Range: 0-100% Resolution: 0.03% within 0-50%, 1% within 50-100% Accuracy: 2% within 0-50%, 3% within 50-100%
Soil temperature parameter	Range: -40~80°C, resolution: 0.1°C, accuracy: ±0.5°C
Conductivity temperature compensation	Built-in temperature compensation sensor, compensation range 0-50 °C
Protection level	IP68
Sealing material	Black flame retardant epoxy resin
Output signal	RS485 (Modbus protocol)

Soil NPK Sensor

Power supply	DC 5-30V
NPK measuring range	1-1999 mg/kg(mg/L)
NPK Resolution	1 mg/kg(mg/L)
NPK Precision	±2%FS
Probe material	stainless steel
Default cable length	2 meters, cable length can be customized
Output signal	RS485(Modbus protocol)

Soil PH Sensor

Power supply	DC 5-30V
Measuring Range	3—9 PH
Resolution	0.1
Accuracy	±0.3PH
Response time	≤10S
Long-term stability	≤5%/year
Probe material	Anti-corrosion special electrode
Sealing material	Black flame retardant epoxy resin
Output signal	RS485(Modbus protocol)

Soil Analyser pH, Temp, EC, Meter 7 in 1
