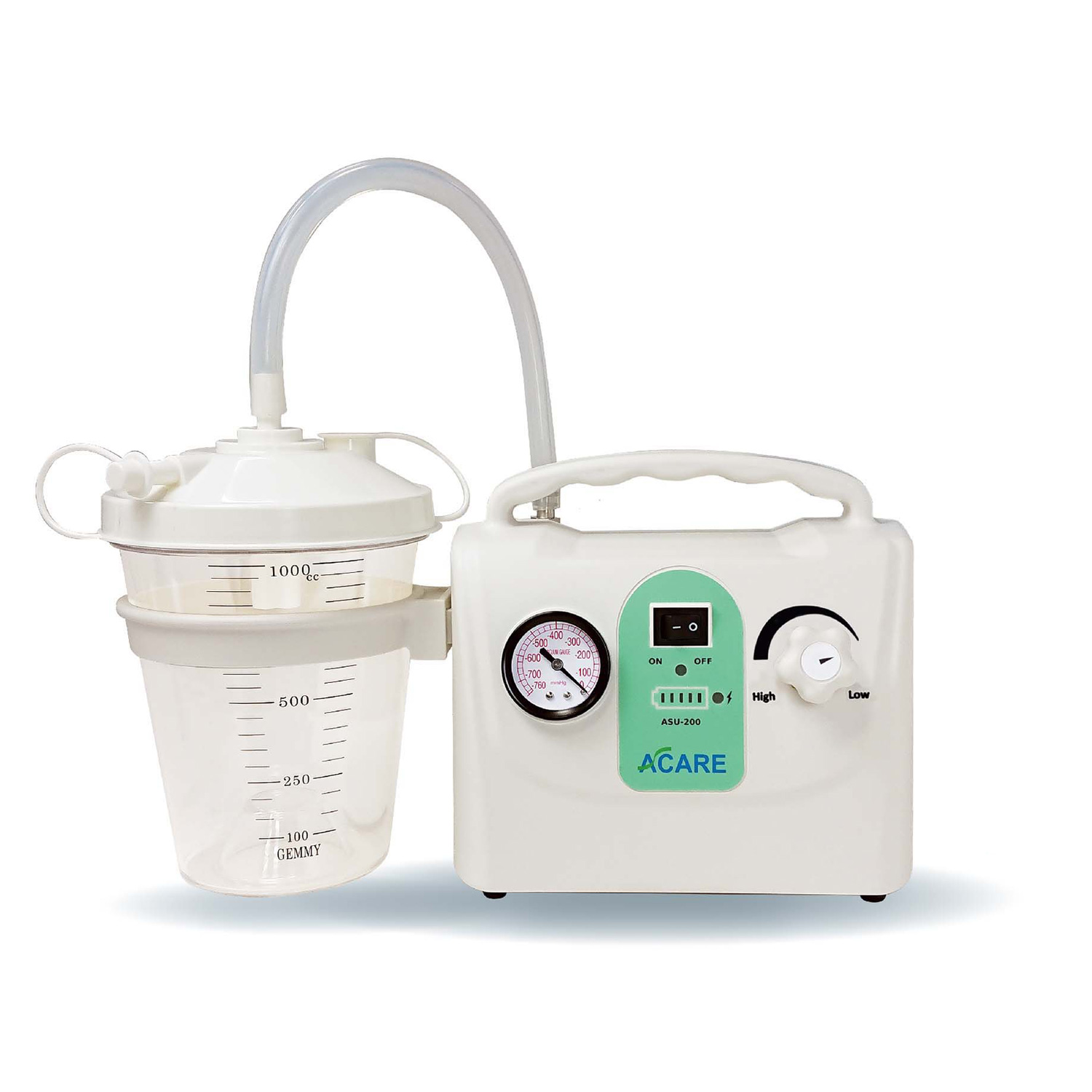

Portable Suction Unit – ACare ASU-200

Features:

• Compact and lightweight
• Easy to operate
• Fully portable
• Up to 24L/min Flow
• Max suction pressure of -600 mmHg (80 Kpa)
• 14.8 VDC, 2.5 AH rechargeable battery
• Battery autonomy of 60 minutes
• Battery Charging Time: 3 hours
• 1000ml Cannister
• Includes carry bag

Specifications:

• Power Consumption: 35VA
• Max Suction Pressure: -600 mmHg (-80 Kpa)
• Exhaust Air Volume: 24 L/MIN
• Supply Voltage: AC 100-240V, 50/60Hz / DC 18V, 3.34A
  Acare Car Charger for DC 12V
• Lithium Battery 14.8 VDC, 2.5 AH
  Charging time: 3 hours
  Using Time: 60 min, after full charged
• Sound Level <70 dB (A)
• Temperature Operation: +10~+40˚C
  Transport and Storage: -15~+50˚C
• Humidity 10％～90％RH
• Operation Pressure 700-1060hPa
• Operation Height <3000m
• Patient Tube φ6mm*φ10mm*1800mm
• Output level High vacuum/High flow
