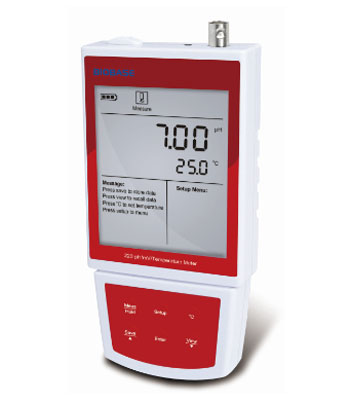

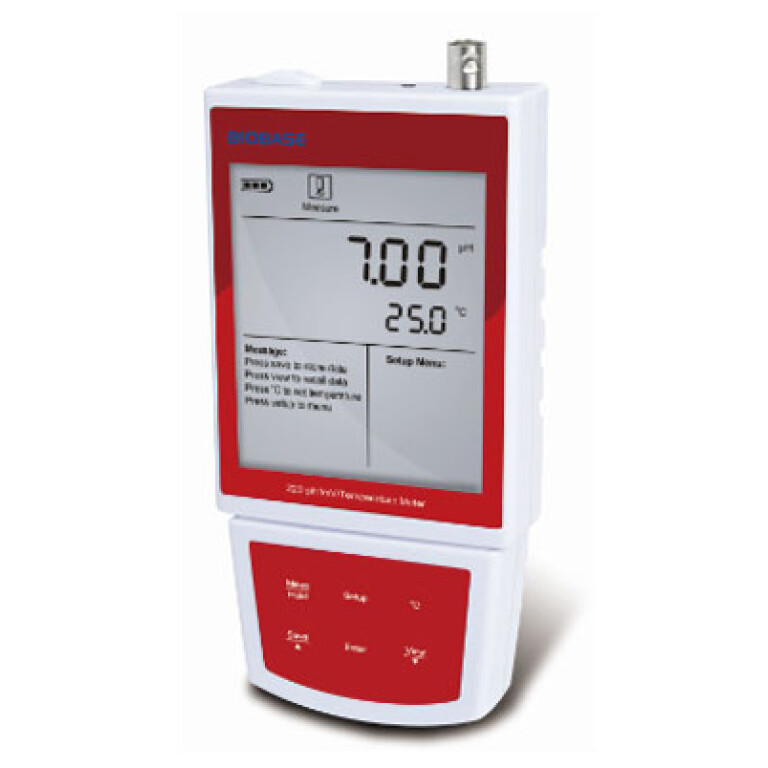

Portable pH-ORP Meter PH-220
Portable pH:ORP Meter-(Model PH-220)
The PH-220 is a handheld, IP67-rated waterproof meter used for rapid, high-accuracy (0.01 pH) measurement of pH, oxidation-reduction potential (ORP/mV), and temperature. Key applications include water treatment, environmental monitoring (rivers/lakes), aquaculture, food/beverage quality, and laboratory research.
Key Features and Uses
Water Quality Testing: Measures acidity/alkalinity in wastewater, drinking water, and environmental samples.
ORP/Redox Monitoring: Assesses sanitization levels (e.g., chlorine effectiveness) in swimming pools and industrial processes.
Industrial Applications: Used in plating, chemical manufacturing, and in-line process monitoring.
Scientific & Field Use: Provides automatic temperature compensation (ATC), 1–3 point calibration, and data logging/hold functions for reliable on-site testing.
Versatile Probes: Compatible with different electrodes for measuring liquids, semi-solids (like food or soil), and surface pH.
Portable pH-ORP Meter PH-220
Functional Capabilities
Automatic Calibration: Recognizes standard pH buffers
Data Management: Features data storage, USB output, and automatic data hold for easier record-keeping.
Durability: IP67 waterproof/dustproof design is ideal for harsh environments.
Application:
Economy portable pH meter, 2 points calibration, automatic temperature compensation, system menu contains 2 optional parameters. The meter is used for measuring the pH and millivolt of samples. Accuracy: 0.01pH.
Portable pH-ORP Meter PH-220
Features:
* Stability indicator automatically shows current measurement status.
* Auto-Hold function freezes stable reading for easy viewing and recording.
* Automatic electrode diagnosis shows offset and electrode slope.
* Reset feature automatically resumes parameters back to factory default options.
* Help message as a operational guide that helps you quickly using the meter(for PH-220).
Technical Parameter
| Model | PH-220 |
| pH Range | -2.00~16.00pH |
| pH Accuracy | ±0.01pH |
| Resolution | 0.01pH |
| Calibration Points | 2 points |
| Calibration Solutions | USA (pH4.01/7.00/10.01) |
| Temperature Compensation | 0~100°C, 32~212°F, Manual or Automatic |
| mV Range | -1999~1999mV |
| mV Accuracy | ±1mV |
| Resolution | 1mV |
| Calibration Points | / |
| Ion Concentration Range | / |
| Ion Concentration Accuracy | / |
| Calibration Points | / |
| Temperature Range | 0~100°C, 32~212°F |
| Temperature Accuracy | ±1°C |
| 0.1°C | |
| Hold Function | Manual |
| Memory | Stores up to 50 data sets |
| Output | / |
| Connector | BNC |
| Power Requirements | 1×9V/800mA battery |
| Dimensions(W*D*H) | 185*88*32mm |
| Package Size(W*D*H) | 475*155*350mm |
| Net Weight | 300g |
| Gross weight | 2kg |
Portable pH-ORP Meter PH-220
