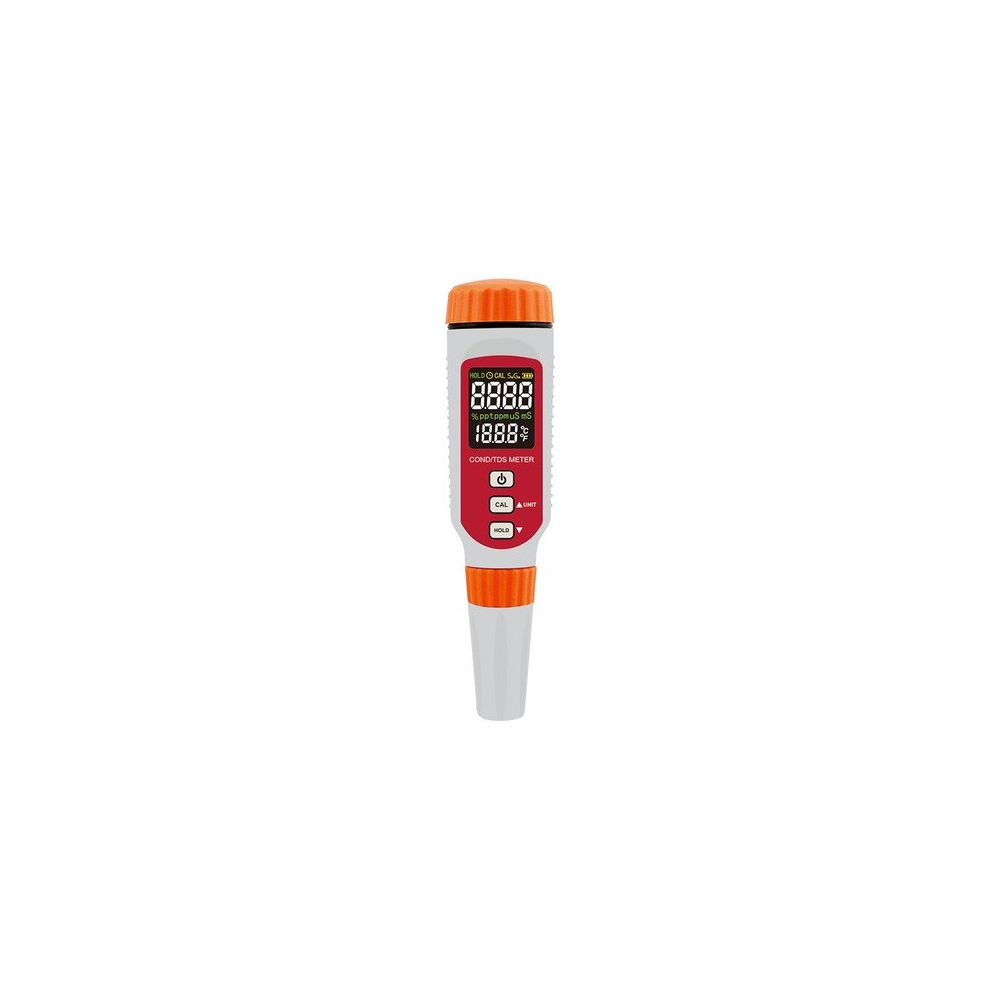

Portable Conductivity Meter – High-Precision EC & TDS Measurement

This portable conductivity meter is designed for accurate and reliable laboratory and field measurements. Offering a full range of EC and TDS functions, it supports 1–3 point calibration and features a customizable setup menu with seven adjustable parameters. With an accuracy of 1% F.S., it delivers dependable results for routine water quality testing.

Key Features

• Perfect for daily testing: Ideal for laboratories, industrial applications, and environmental monitoring.

• 1–3 point automatic calibration: Quickly recognizes calibration solutions for fast setup.

• Selectable parameters: Adjust the cell constant, temperature coefficient, and TDS conversion factor to match your testing needs.

• Automatic Temperature Compensation (ATC): Ensures precise readings across the full measurement range.

• Auto-Hold function: Automatically detects and locks the endpoint for stable, accurate results.

• Customizable setup menu: Choose temperature units, calibration points, auto-power-off settings, and more.

• Factory reset option: Instantly restore all settings to factory defaults.

How It Works

A portable conductivity meter measures the ability of a solution to conduct electrical current. This conductivity is influenced by the concentration of ions present in the liquid. The instrument operates based on Ohm’s Law, measuring the reciprocal of electrical resistance between two electrodes.

There are two primary methods of measurement:

• Conductive sensor: Applies alternating electrical current to electrodes immersed in the solution and measures the resulting voltage.

• Inductive sensor: Measures conductivity without direct contact between the sensing element and the liquid—ideal for harsh or contaminated samples.

This meter can measure conductivity across a broad range—from 0 to 2,000,000 µS, depending on the model capacity—making it suitable for many water quality applications.
