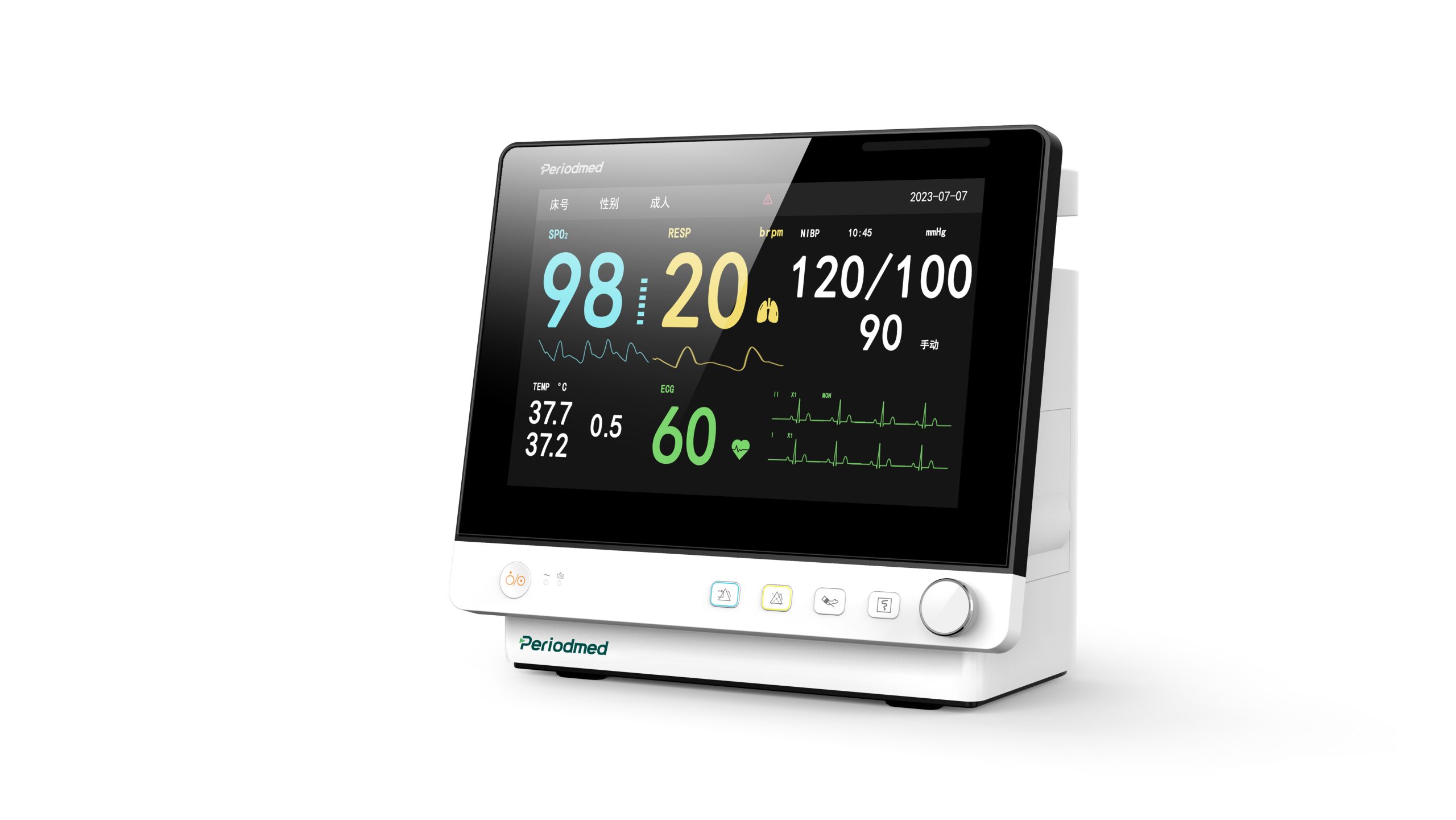

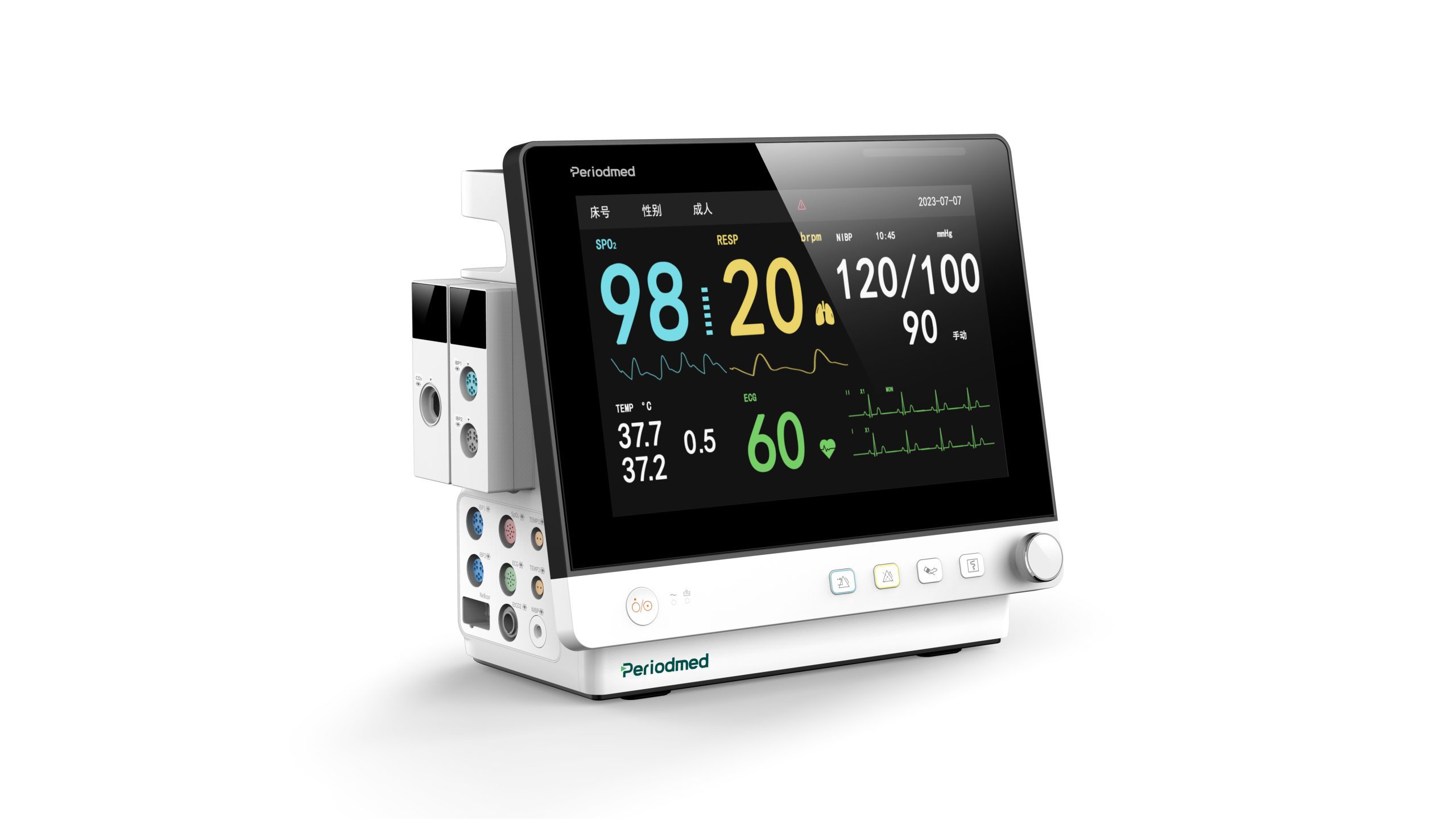

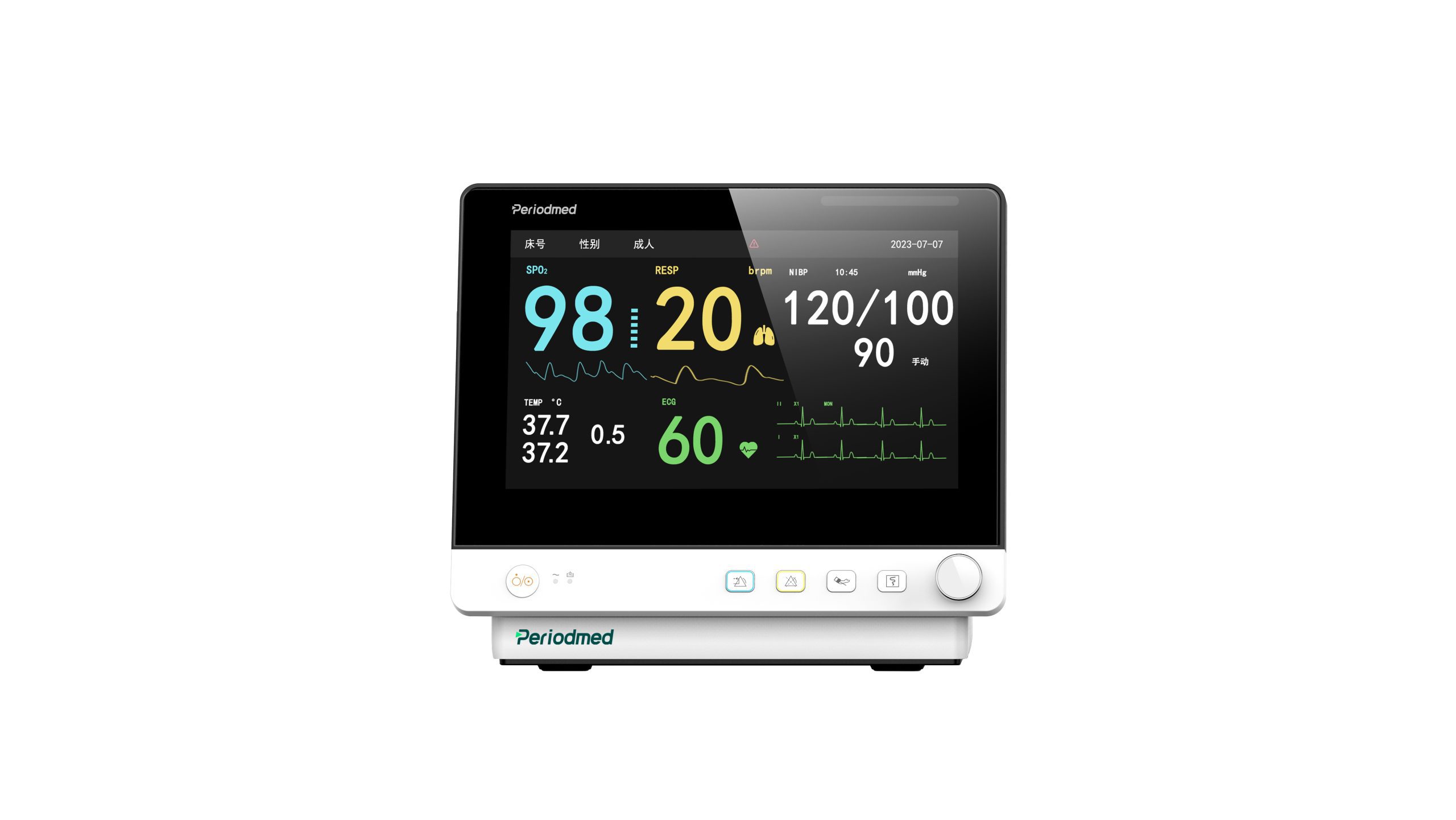

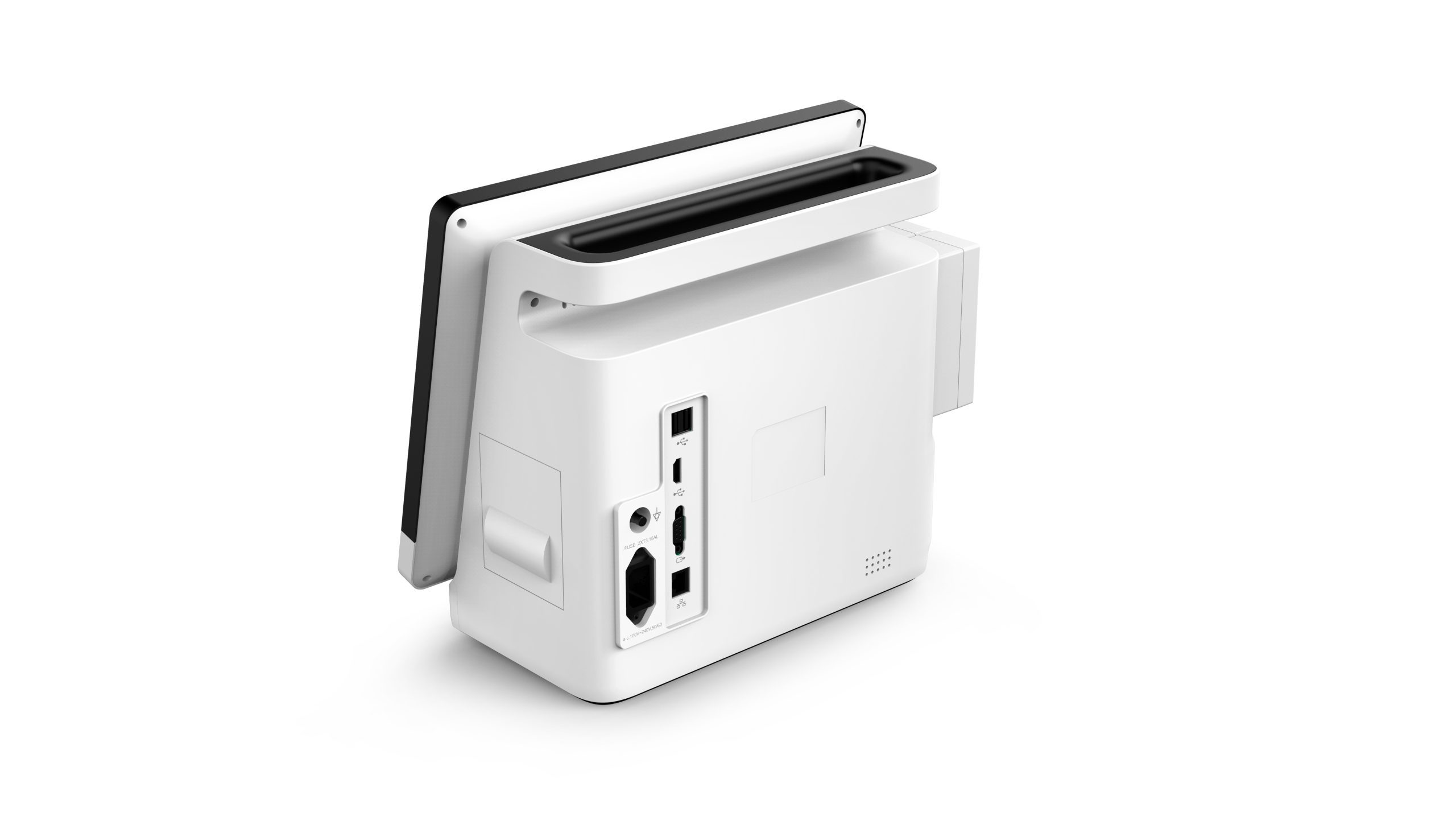

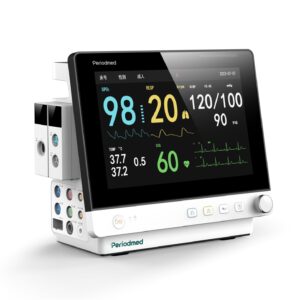

Patient Monitor PM-LP12A

12 INCH PATIENT MONITOR PM-LP12A NIBP , SPO2 , TEMP, RESP, ECG, ETC02 TECHNICAL SPECIFICATIONS Multi-parameter Patient Monitor

• CE, ISO13485
• SFDA: Class Ⅱb
• Anti-electroshock degree: ClassⅠequipment (internal power supply)
• TEMP/SpO 2 /NIBP: BF
• ECG/Resp: CF Quality Standards and Classification
• Adult/Pediatric/Neonatal/Medicine /Surgery/Operating Room/ICU/CCU Application Range
• 12” realcolorTFTscreen Resolution:800×600
• One alarm indicator(yellow/red)
• One working indicator(green)
• One battery charge stateindicator(green)
• Three modes in accordance with the alarm state Display Operating Environment :
• Temperature: 0 ~ 40 ℃
• Humidity: ≤85%
• Altitude: -500~4600m Transport and Storage Environment :
• Temperature: -20~60 ℃
• Humidity: ≤93%
• Altitude: -500~13100m Environment
• AC: 100 ~ 240V, 50Hz/60Hz
• DC: Built-in rechargeable battery
• Battery: 5200mAh 11.1V lithium battery 4h operating afterf ull charge(one piece) 5min operating after low battery alarm Power Requirements
• Equipment: 300mm×286mm×155 mm(about); 4.5kg(about)
• Package : 350mm ×380 mm × 300mm(about); 6.5kg(about) Dimension and Weight
• Trend diagram/table: 7x24h
• NIBP review: 400 events
• Wave review: 100min
• Alarm review: 100 alarm events
• Support drug concentration titration analysis Date Storage
• Range: 0 ~ 100%
• Resolution: 1%
• Precision: 70% ~ 100%: ±2 DIGIT 0% ~ 69%: ±no definition given SpO2
• Range: 20 ~ 300bpm
• Resolution: 1bpm
• Precision: ±3bpm Pulse Rate
• Channel 2
• Measure & alarm range: 0 ~ 50 ℃
• Resolution: 0.1 ℃
• Precision (no sensor): ±0.1 ℃ TEMP
• Etco2 (Optional)

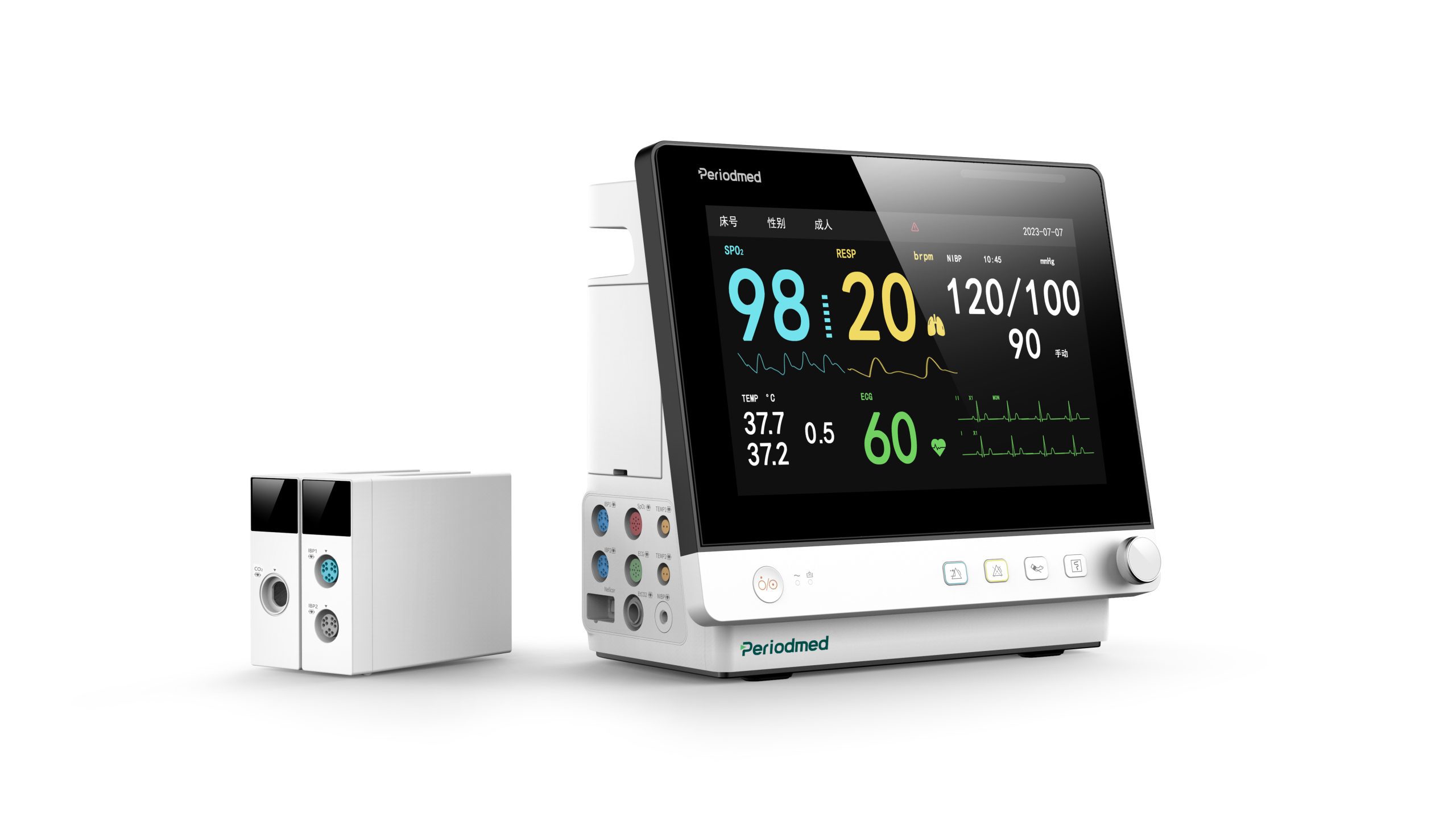

• IBP modular (Optional)
• Touch screen (Optional)
• Trolley bracket (Optional)
• Hanging bracket (Optional)
• Monitor recorder (Optional)
• Wifi (Optional)
• C.O.modular
• BIS modular Optional
• 5 Leads: RA, LA, LL, RL, V
• Lead mode: Ⅰ,Ⅱ, Ⅲ, aVR, aVL, aVF, V Increase: ×250，×500，×1000， ×2000
• Sensitivity: > 200 uV (Peak-to-peak value)
• Input impedance: > 5 ( megohm )
• Bandwidth: Surgery 1 ~ 20 Hz
• Monitor 0.5 ~ 40 Hz
• Diagnostic 0.05 ~ 130 Hz
• CMRR 100dB
• Polarization Voltage: ± 300mV
• Baseline Recovering Time: After defibrillation< 3 seconds
• Signal Range: 8 mV （Peak-to-peak value）
• Calibrating Signal: 1mV, precision ±5%
• Heart rate range：15-380bmp
• Heart rate accuracy:+/-1% ECG
• Method: RA-LL impedance
• Resp Impedance range: 0.3 ~ 3
• Base Impedance range: 200 ~ 4000
• Bandwidth: 0.1 ~ 2.5Hz
• Resp rate: Adult 0 ~ 120BrPM
• Neonatal/Pediatric 0 ~ 150BrPM
• Resolution: 1BrPM
• Precision: ±2 BrPM
• Asphyxia Alarm: 10～40 seconds RESP
• Method: Pulse wave oscillometry
• Work mode: Manual/ Auto/ STAT
• Measure interval of auto mode: 1,2,3,4,5,10,15,30,60,90,120,180, 240,480 minute(s)
• Measuring Time of STAT Mode: 5 minutes
• PR range: 30 ~ 250bpm
• Measure & alarm range: Adult SYS 40 ~ 270mmHg DIA 10 ~ 215mmHg MEAN 20 ~ 235mmHg Pediatric SYS 40 ~ 200mmHg DIA 10 ~ 150mmHg MEAN 20 ~ 165mmHg Neonatal SYS 40 ~ 135mmHg DIA 10 ~ 100mmHg MEAN 20 ~ 110mmHg
• Static pressure range: 0 ~ 300mmHg Precision: ± 3mmHg
• Pressure precision: Max. average error: ±5mmHg Max. standard deviation: ±8mmHg
• Overvoltage protection: Adult 300mmHg Pediatric 240mmHg Neonatal 150mmHg NIBP
• Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
• Measuring and alarm range
• ART 0 ~ 300 mmHg
• PA -6 ~ 120 mmHg
• CVP/RAP/LAP/ICP -10 ~ 40 mmHg
• P1/P2 -10 ~ 300 mmHg
• Press Sensor
• Sensitivity 5 uV/V/mmHg
• Impedance 300-3000
• Resolution: 1 mmHg
• Accuracy: ±2% or ±1mmHg, which great
• Actualization interval: about 1 Sec. IBP
• Side/Main stream
• Warm-up time:when the ambient temperature is 25 ℃, the carbon dioxide curve(capnogram) can be displayed within 20/15 seconds, and all the specifications can be fulfilled within 2 minutes.
• Measurement range:0-150mmHg, 0-19.7%,0-20kPa (at 760mmHg), atmospheric pressure provided by the host.
• Resolution 0.1mmHg ：0-69mmHg 0.25mmHg： 70-150mmHg
• Precision 0-40mmHg： ±2mmHg 41-70mmHg： ±5%（reading） 71-100mmHg： ±8%（reading） 101-150mmHg：±10%（reading）
• Respiratory rate range 0- 150 BPM
• Respiratory rate accuracy: ±1 BPM CO2
• NIBP cuff & tube
• ECG cable & electrodes
• SpO2 sensor
• TEMP probe
• Lithium-ion battery
• Power cable
• Operator’s manual
