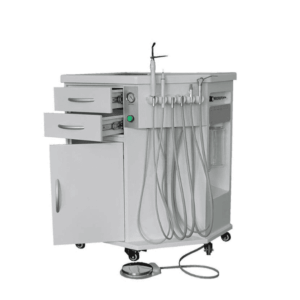

Mobile Dental Delivery System | GU-P 212

Mobile Dental Delivery System | GU-P 212

What is Portable Mobile Dental Unit?

The Mobile dental unit was specifically designed for dentists. Because it has good portability. It can be widely used in schools, nursing homes, and community clinics. For those who are not convenient to go to the dental clinic, provide efficient and convenient dental treatment services.
The shell of this machine is made of high-performance ABS material. Built-in oil-free air compressor and stainless steel gas cylinder. It contains the most basic functions that a dental unit chair should have.

Product Description

1. The stainless steel gas tank of this portable dental device is integrally molded. No welding is required to ensure no air leakage.
2. The foot pedal adopts multifunctional integrated control. Can control the handpiece and scaler at the same time. Simplify operation and facilitate treatment.
3. The tooth chair USES a built-in vacuum generator. Both air and water pipes are made of medical-grade PP material. The external circulation ues clean airflow, which can ensure the handpiece and the suction system work at the same time. Strong suction, no backflow, no risk of cross-infection.
4. High-performance oil-free internal compressor. Four shock absorbers are used at the bottom, which can effectively eliminate the noise caused by the compressor. 5 years of service life, so that the product can continue to run steadily.

Features

1. Easy to use: easy to move out; lightweight; just a few seconds to set up the unit, connect to correct electric power supply, and then you may work with the unit freely.
2. Easy to operate: functions are the same as the traditional dental chairs, control by footswitch.
3. Fashionable appearance: like a suitcase, compact structure, with handle, with casters, you may move it freely.
4. Multi-functional: functions same as the traditional dental chairs, can meet the regular operation needs.
5. Stable performance: working life can reach to 20000 hours, continuous to use without any limitation.
6. Easy to maintain: oil-free silent air compresssors, maintenance-free, but only clean dirt water bottle regularly.

Specifications

1. Supply voltage: 100-240V/50-60HZ
2. Compressor power: 0.6 KW
3. Compressor air flow: ≥118L/min
4. Compressor pressure: 0-0.5 MPa
5. Compressor noise: 48 ±2 dB(A)
6. Clean water/sewage bottle: 650mL /1000mL

Standard Configuration

1.3-way syringe 1pc
2.Handpiece tubing (2-hole/4-hole) 2pcs
3.Straight High Volume Evacuator 1pc
4.Curing light 1pc
5.Ultrasonic scaler 1pc
6.Build in 4000ML stainless steel antibacterial coated air tank 1set
7.Self-contained air compressor 1set
8.Clean water supply system 1set
9.Drainage system 1set
10.Foot control 1pc

Product Technical Parameters
