Name: Lab Equipment Calibrator 4-20MA
SKU: X229
Availability: InStock

Lab Equipment Calibrator 4-20MA

Laboratory Equipment Calibrator 4-20ma

Lab Equipment Calibrator 4-20MA

Product Description

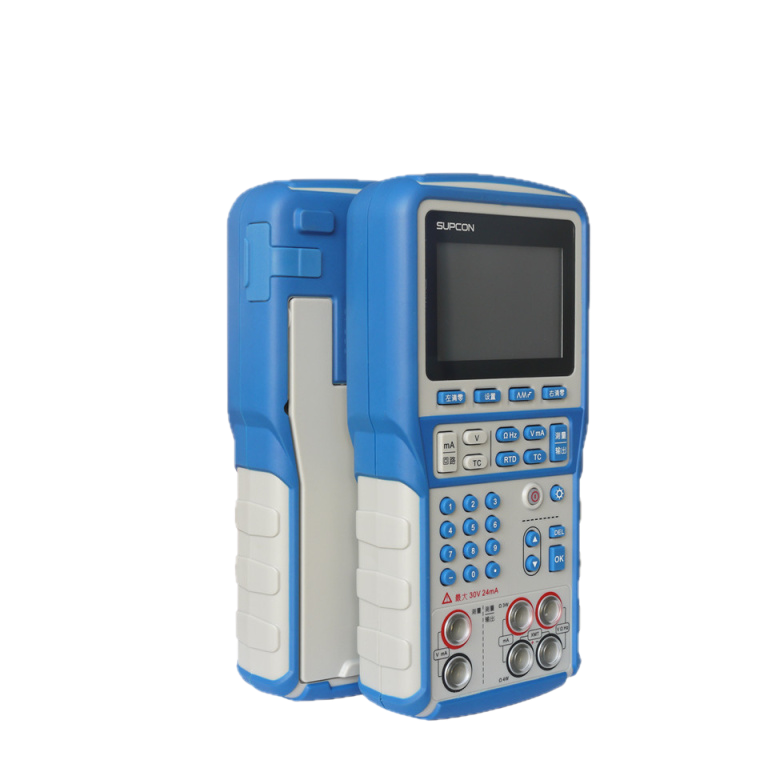

The X-II series High Quality factory directly stainless steel calibration container is a hand-hold,

battery-powered instrument that measures and sources a variety of electrical parameters.

It can be widely applied in industrial fields and laboratories.

The X-II series Process Calibrator has passed CE certification.

A Split-screen Display

he upper display allows you to measure volts, current and thermocouples.
The lower display allows you to measure and source volts, resistance temperature detectors (RTD), thermocouples (TC), resistance and frequency.

Measuring Temperature with Thermocouples or RTDs

The calibrator supports eight standard thermocouples, including types J, K, T, E, R, S, B or N.

The calibrator supports six standard RTDs which are Cu50, Pt100, Pt100-3916, Pt200, Pt500 or Pt1000.
The calibrator accepts RTD measurement input in two-, three-, or four-wire connections, with the three-wire connection the most common.

Ramping and Stepping the Output

Two ways are available for adjusting the value of source function: manual stepping and ramping the output.

Storage and recall of 10 setups

You can store up to 10 setups in a nonvolatile memory and recall them for later use.
A low battery condition or a battery change does not jeopardize the stored setups.

Auto Flash Terminals

You can connect the test leads according to auto flash prompt in order to avoid the misoperation.

l Split-screen Display

l DC Voltage Measurement/Source

l DC Current Measurement

l DC Current Source

l Resistance Measurement/Source

l RTD Measurement/Source

l Thermocouple Measurement/Source

l Frequency Measurement/Source

l Counting Pulse

l Transmitter Signal Simulation
