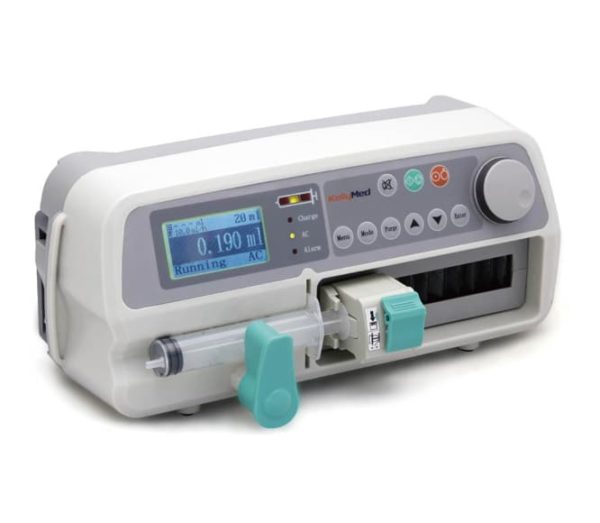

KL-602 Syringe Driver

Specifications:

• Model KL-602
• Syringe Size 10, 20, 30, 50/60 ml
• Applicable Syringe Compatible with syringe of any standard
• VTBI 0.1-9999 ml <1000 ml in 0.1 ml increments > 1000 ml in 1 ml increments

Flow Rate:

• Syringe 10 ml: 0.1-400 ml/h
• Syringe 20 ml: 0.1-600 ml/h < 100 ml/h in 0.1 ml/h increments
• Syringe 30 ml: 0.1-900 ml/h > 100 ml/h in 1 ml’h increments
• Syringe 50/60 ml: 0.1-1300 nWh

Bolus Rate

• Syringe 10 ml: 400 ml/h
• Syringe 20 ml: 600 ml/h
• Syringe 30 ml: 900 ml/h
• Syringe 50/60 ml: 1300 nWh
• Anti-Bolus :Automatic
• Accuracy ±2% (mechanical accuracy ≤1%)

Infusion Mode

• Flow rate: ml/min, ml/h
• Time-based
• Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h, etc.
• KVO Rate: 0.1-1 ml/h (in 0.1 ml/h increments)
• Alarms: Occlusion, near empty, end program, low battery, end battery,AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off
• Additional Features: Real-time infused volume, automatic power switching,automatic syringe identification, mute button, purge, bolus, anti-bolus, system memory
• Additional Features Real-time infused volume, automatic power switching, automatic syringe identification, mute button, purge, bolus, anti-bolus,
• Drug Library : Available
• Occlusion Sensitivity : High, medium, low
• Power Supply: AC 110/230 V (optional), 50/60 Hz. 20 VA
• Battery: 9.6±1.6 V, rechargeable
• Battery Life: 7 hours at 5 ml/h
• Working Temperature :5-40°C
• Relative Humidity :20-90%
• Atmospheric Pressure :860-1060 hpa
• Size 314*167*140 mm
• Weight 2.5 KG
• Safety Classification: Class II, type CF
