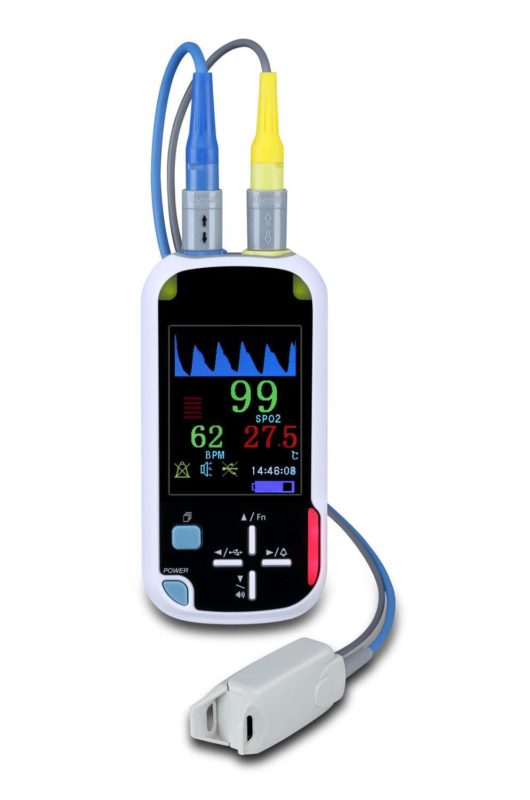

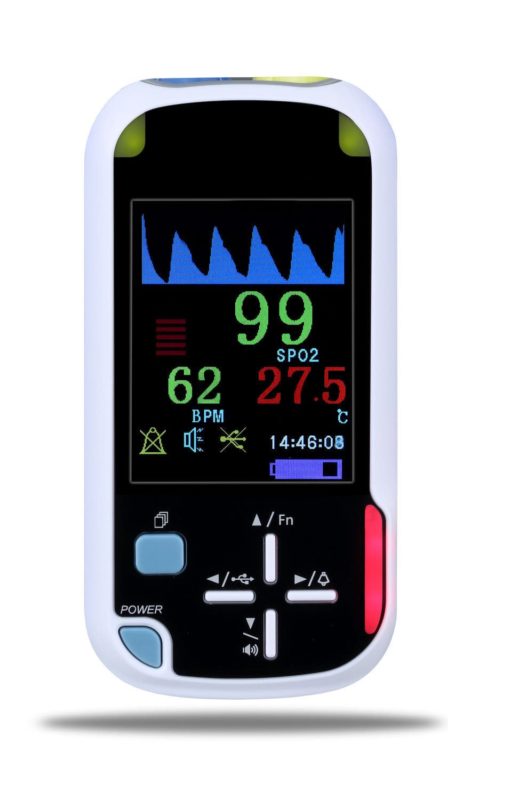

Jerry-ll+ Pulse Oximeter + SPo2

Features:

• Monitoring interfaces for Sp02. temperature, pulse rate & PLETH
• 2.8 inch color TFT LCD In real time display. Displayable in big font and big screen
• Bluetooth wireless is very convenient to realize reviewing the measurements in big screen via connecting PC and to upload history data to PC for review, printing or storage
• Unique software for tele-monitoring by transmitting data synchronously via internet
• Long time monitoring and sleeping monitoring
• Storage Review trend data up to 3888 groups, data save time interval settable
• Audio and visual alarm when parameters exceeded and sensor-off
• Built-in rechargeable Ll-ion battery, up to 15-hour running time

Specifications:

Oxygen saturation ( Sp02 )

• Sp02
• Patient range; Adult, child and neonate
• Measurement Range: 0%-100%
• Accuracy: *2%(70%-100%), 0%-69% unspecified
• Resolution: 1%
• Pulse Rate
• Measurement Range: 0bpm-250bpm
• Accuracy: ±2bpm
• Resolution: 1bpm

Temperature (TEMP)

• Channel: 1
• Input: Skin surface thermal-sensitive resistor
  temperature sensor
• Measurement Range: 0°C-50°C
• Accuracy: ±0.2°C
• Resolution: 0.1°C

Alarm

• Mode: Audio, visual
• Type: parameters exceeded and sensor-off alarm

Storage and Review

• Trend data up to 3888 groups. Data save time interval settable

Display Mode

• TFT LCD Screen : 2.8inch 240 x 320 dot matrix color TFT LCD

Operation Environment

• Temperature: working: 0°C- 45°C
• Transport and storage: -20°C-60°C
• Humidity: working: 15%-95%(non-condensing)
• Transport and storage: I0%-95%{non-condensing)
• Altitude: working: 86kPa-106kPa. Transport and storage: 50kPa-106kPa

Power Requirements

• Internal Battery:
• Type: 3.7v Li-ion Rechargeable battery Operating time: 15 hours Recharge time: 8 hours AC power adapter:
• Input: AC100V-240V, 5060Hz, 5VA Output; D.C.5V
• Dimension:
• 120mm x 60mm x 28mm
• Net Weight
• 195g (not include accessories)
