Name: ECG 1200G – 12 Channel &amp; Interpretation
SKU: 100875
Availability: InStock

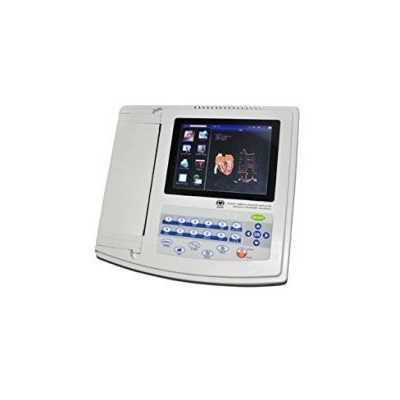

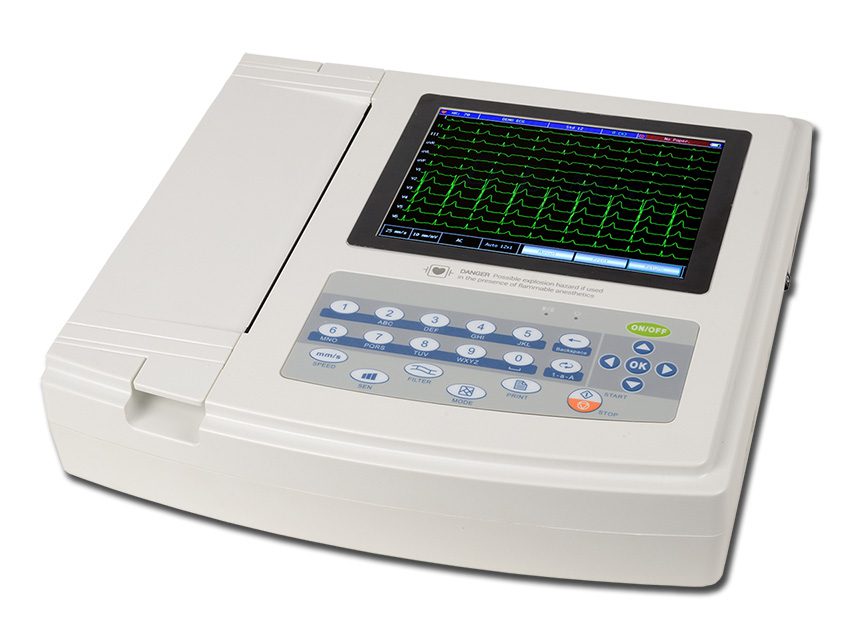

Contec ECG 1200G Electrocardiograph

Product Description

12 Lead Digital ECG EKG Machine
Model:ECG1200G Brand:CONTEC

Features

1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
3)Multiply printing modes and formats, including auto 12×1, auto 6×2+1, auto 6×2+1_H, auto 6×2, auto 6x2_H, auto 3×4+1, auto 3×4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
4)Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
5)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
6)Built-in memory stores up to 1000 cases, convenient for case review and statistic.
7)Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
8)In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.

Screen size	8 inches
Leads	12 leads
Input way	Floating and defibrillation protection
Lead	Standard 12 leads(model:BIP0057)
Patient leak current	<10µA
Input impedance	≥50MΩ
Frequency response	0.05Hz~150Hz(-3dB)
Time constant	Time constant>3.2s
CMRR	>60dB, >100dB( Adding filter)
EMG interference filter	35Hz(-3dB)
Recording way	Thermal printing system
Specification of recording paper	210mm(W)*20m(L) high-speed thermal paper
Paper speed	Auto record: 25mm/s, 50mm/s, error:±5%
	Rhythm record: 25mm/s, 50mm/s, error:±5%
	Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
Sensitivity selections	2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV.
Auto record	Record setup according to auto record format and mode, automatically changing leads, measuring and analysing.
Rhythm record	Record setup according to rhythm record format and mode, automatically measuring and analysing.
Manual record	Record setup according to manual record format, manually changing leads.
Measurement parameters	HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Ais, QRS Ais, T A*is, R(V5) , S(V1) , R(V5)+S(V1)
Product safety type	Class I CF applied part; there is defibrillation and pacing protection circuit in it.
Enduring polarization voltage	±300mV
Noise level	≤15µVp-p
Fuse specification	2 pcs φ5*20mm AC time lag; T1.6A/250V(Power supply 220V)
Size	340mm(L)320mm(W)85mm(H)
Net Weight	3.2Kg
