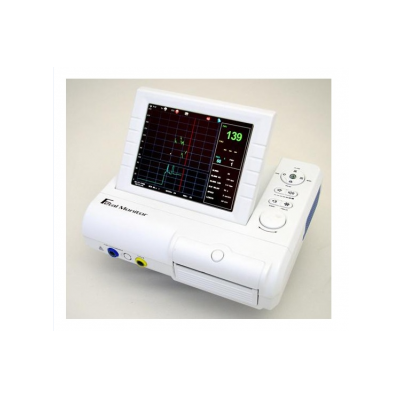

Doppler Foetal CMS800G 8.4″ – optional twins

FETAL MONITOR POP UP SCREEN – CMS800G

– Light weight, space-saving, easy to use

– 8.4″ LCD screen, folding 60 degree

– Display waveforms and digitals simultaneously

– FHR 120-160 normal area highlight

– 12 hours data and waveform storage and review

– FHR upper and lower limit alarm

– Twins monitoring function option

– High sensitive 9 Elements 1 MHZ Pulse Doppler transducer

– Built-in PC Network can be connected to the central monitoring system

SPECIFICATIONS:

• MODEL:: FETAL MONITOR CMS 800G
• Display:: 8.4” colour LCD display, 60 degree folding
• Recorder: Record paper: Printing Width: Effective printing width: Printing speed: Record message:: Thermal printer Z-fold, thermal paper 112mm 104mm 1,2,3cm/min Data, time, TOCO Trend graph, paper speed, FHR type, FHR Trend graph etc
• Signal interface: RJ 45 interface
• FHR Technique: Ultrasound Frequency:: Ultrasound pulse Doppler and auto correlation 1MHz
• FHR range:: 50-210bpm
• Resolution: 1bpm
• Accuracy:: ± 2bpm
• TOCO: Range: Resolution: Non-linear Error: Zero control:: 0-100% 1% ≤±10% Manual
• Fetal movement:: Manual fetal movement mark
• Power Supply:: AC 100-240v, 50/60Hz P max=60VA
• Dimensions:: 320mm x 260mm x 80mm
• Weight;: 3.2kg
• Quality Standard:: CE
