Dental Apex Locator

Dental apex locator is an electronic device used in endodontics determine the position of the apical constriction and thus determine the length of the root canal space. It’s an apex of the root has a specific resistance to electrical current, and this is measured using a pair of electrodes typically hooked into the lip and attached to an endodontic file.

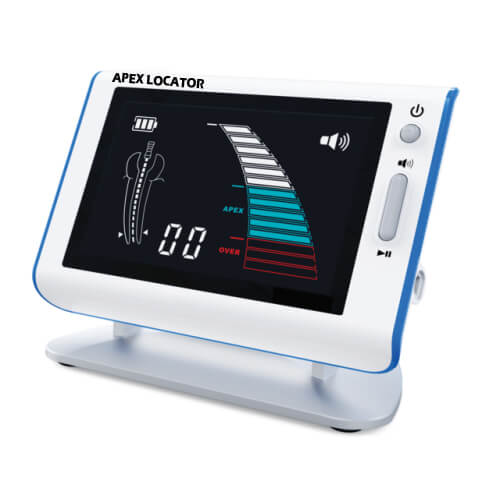

KS-AL1311 Apex Locator Features:

1. The one-button operation, simple and convenient.
2. 4.5 ” LCD screen concise and clear .
3. High testing accuracy, widely used in different oral environment .
4. Specification Oral dedicated CE line, ensures safe .
5. Folding, easy to adjust the visual angle.
6. Automatic calibrating ensures the measurements are accurate.

The apex of the root has a specific resistance to electrical current which is measured by the instrument using a pair of electrodes attached to an endodontic file. An alarm or digital readout will signal when the tip of the file makes contact with the apex tissue.

Specifications:

Voltage/Battery – 3.7V/800mAh

Charge – 100-240V 50/60Hz

Test Voltage – Below AC80mV

Test Electric Current – below 10uA

Measurement – 150*120*85mm

Gross Weight – 0.6kg
