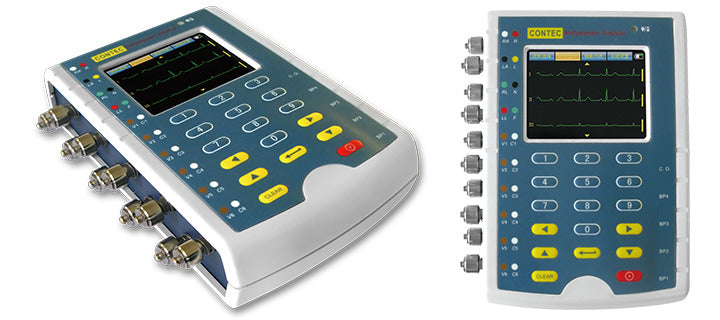

Contec MS400 Multi-Parameter Patient Simulator

Description:

• MS400 Multiparameter Simulator is a portable device, which can provide comprehensive physiological waveform to content general test and train requirement.
• It can check the monitor rapidly near the bed, also can test the quality warranty of ECG equipment, monitor and remote therapy equipment.
• At the same time, it can be used as the training of distinguishing from arrhythmia waveforms to the nurses.

Features:

• 3.5-inch colour TFT touch-screen, 320*240 pixels, and friendly operation interface.
• Display the output waveforms synchronously, which is convenient for user to compare with the test equipment.
• It integrates the functions of SD socket interface; user can output the custom waveform by this device.
• Built-in templates list to provide the waveform that is expressed by each preset sequence number, which is convenient for searching.
• Two operation interfaces: Chinese and English.
• Operate with keystroke and touch-screen expediently and rapidly.
• Built-in 3.7V/4000mAh (Rechargeable alkaline battery).
• Optical external power: AC 220V, 50Hz or AC 120V, 60Hz

ECG/Arrhythmia:
ECG:

• Conventional: All leads have the same voltage with the II-lead as the reference
• Amplitude: 0.5,1.0,1.5 and 2.0mV
• The accuracy of Amplitude: ±2%
• ECG Rate: 15,20,25,30,40,60,80,100,120,140,160,180,200,220,240,260,280,300,320,340 and 350 BPM
• ECG artifacts: 50 or 60 Hz, muscle, baseline drift and breathing
• The elevation of the ST segment: -0.8 mV to +0.8 mV, the step is 0.1 mV
• The default: 80 BPM,1mV

Arrhythmia:

• Atrial: Atrial Fib(coarse), Atrial fib(fine), Atrial Flutter, Sinus Arrhythmia, Missed Beat, Atrial
• Tachycardia, Nodal Rhythm, Supraventricular Tachycardia
• Ventricular: Vent Fib (coarse), Vent Fib (fine), Premature Ventricular
• Contraction (PVC) 6/min,
• PVCs 12/min, PVCs 24/min, Frequent Multifocal, Bigeminy, Trigeminy, Paired PVCs, Run 5
• PVCs, Run 11 PVCs, Vent Tachycardia, Asystole
• Premature Beat: Atrial Premature Atrial Contraction (PAC), Nodal PNC, Left
• Ventricular Focus
• PVC1, Early Left Ventricular Focus PVC1, Right Ventricular Focus PVC1, Early
• Right
• Ventricular Focus PVC1, R on T Left Ventricular Focus, R on T Right
• Ventricular Focus, Multifocal PVC
• Conduction Defects: First Degree Heart Block, Second Degree Heart Block,
• Third Degree Heart Block, Right Bundle Branch Block, Left Bundle Branch
• Block

ECG Performance Testing:

• ECG amplitude: 0.5,1.0,1.5 and 2.0mV
• The accuracy of Amplitude: ±2%
• Pulse: 30 and 60 BPM, the width of pulse wave is 60 ms
• Square: 0.125 and 2.0 Hz
• Triangle: 2.0 and 2.5 Hz
• Sine: .0.5, 5, 10, 40, 50, 60 and 100 Hz
• ECG Rate:15, 20, 25, 30, 40, 60, 80, 100, 120, 140, 160, 180, 200, 220, 240,
• 260, 280, 300, 320, 340 and 350 BPM
• The accuracy of ECG Rate: ±1%

Respiration:

• Respiration Rate: 0 (Apnea), 15, 20, 30, 40, 60, 80, 100, 120 and 150 R/MIIN
• Respiration Impedance: 0.2, 0.5, 1.0 and 3.0 B
• Baseline Impedance:500,1000,1500 and 2000
• Apnea: 12 s, 22 s, 32 s
• ECG simulator with adjustable heart rate/12-lead output
• 33 kinds of Arrhythmia waveforms
• Pacemaker
• Two IBP channels
• Variety of respiratory impedance,apnea pauses (0 BrPM) of 12, 22 and 32 seconds.
• Standard ECG calibration
• Export square,triangle and sine with adjustable frequency

IBP:

• The default: 00/00mmHg
• Dynamic IBP

Channel 1: Artery 120/80mmHg

• Radial 120/80mmHg
• Left Ventricle 120/00mmHg
• Right Ventricle 25/00mmHg

Channel 2: Artery 120/80mmHg

• Radial 120/80mmHg
• Left Ventricle 120/00mmHg
• Right Atrium 15/10mmHg
• Right Ventricle 25/00mmHg
• Pulmonary Artery 25/10mmHg
• Left Atrium 14/4mmHg

Static-Pressure Levels:

• Channel 1: 0, 80, 160, 240, 320 and 400mmHg
• Channel 2: 0, 50, 100, 150, 200 and 250mmHg
