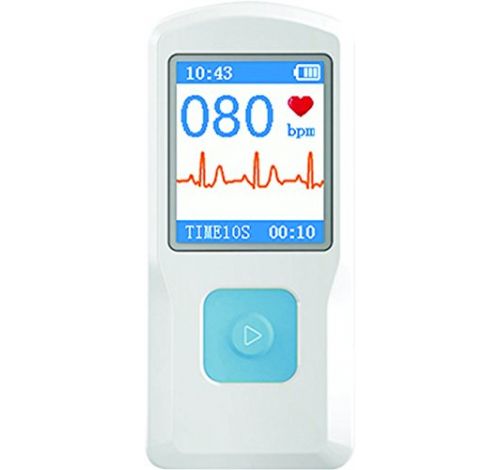

Contec ECG PM10 Hand Held

Description:

• PM10 Portable ECG Monitor is a device for checking ECG.
• Is applicable for family and individual user, it is a good helper to early prevent from cardiovascular diseases and reduce risks.
• Intelligent design, achieves remote health management by using with mobile application, it can automatically start measurement, store ECG, upload data, download health conclusion and obtain doctor advice at the first moment.

  Application Object：

• It is applicable for patients with different kinds of chronic diseases, especially coronary heart disease, diabetes, hypertension, myocarditis, obesity, chest pain, palpitations and dyspnoea.

Features：

• 1.77″ colour TFT-LCD.
• Quickly to check ECG once finger touching, convenient to operate.
• Accurate conclusion can be obtained immediately after measuring.
• The built-in rechargeable lithium battery can continuously record for up to 500 cases in full charging.
• Bluetooth transmission.
• ECG data can be saved to CLOUD Platform permanently, convenient to check and analyse.
• Historical data can be printed at any time, convenient to diagnose.

Performance：

• Calibration voltage：1mV±5%
• Standard sensitivity：10mm/mV±5%
• Amplitude frequency characteristic： standard: 10Hz，1Hz～20Hz；(+0.4dB，-3dB)
• Noise level：≤30μV
• CMRR：≥60dB
• Scanning speed：25mm/s±5%
• Sampling rate：250 dots/s
• HR measurement range：30bpm～300bpm，error： ±1bpm or 1%
• Type of protection against electric shock: Internal power device
• Degree of protection against electric shock: Type BF applied part
• Degree of waterproof: IP22

Accessories：

• Power cord, 1
• User manual, 1GB only

Physical Characteristic：

• Dimension: 100mm(L)×45mm(W)×15mm(H)
• Weight: 60g

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
