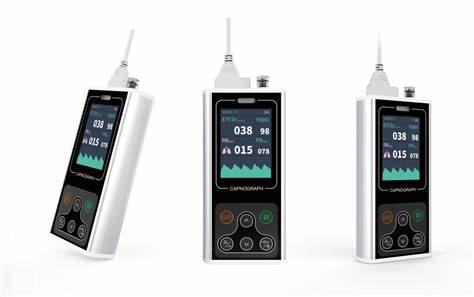

Portable design
Compact and lightweight design, it is suitable for various emergency scenes such as patient transport, emergency, surgery and monitoring.
User Friendly product
Physical button with friendly software system, easy to study and operate.
Safety and reliable
2.8″ color LCD screen with customizable limits and unit audio-visual alarm system, provide reliable protection for patients.
Multi-dimensional and high spec measurement range
ETCO2 measuring range: 0-150mmHg
Respiration rate measuring range: 2-120rpm
SpO2 measurement range: 30-100%
Pulse measurement range: 25-250 bpm
Specifications:
End-tidal CO2 measurement:
1）Measurement range: 0 ~150mmHg
2）Resolution: 1mmHg
3）Accuracy:
0～40 mmHg：±2 mmHg
41～70 mmHg：±5% of readings
71～100 mmHg：±8% of readings
101～150 mmHg：±10% of readings
Respiration rate measurement:
1）Measurement range: 2rpm～120rbpm
2）Resolution: 1rpm
3）Accuracy: ±1rpm
SpO2 measurement:
1) Measurement range: 30～100 %
2) Resolution: 1%
3) Accuracy:
70～100 %：2 %
0～69 %：undefinition
u Pulse rate measurement:
1) Measurement range: 25～250 bpm
2) Resolution: 1bpm
3) Accuracy: ±2 bpm or ±2%,whichever is greater
Safety characteristic:
1）Device type: internally powered equipment
2）Degree of protection against electric shock: type BF applied part
3）Degree of protection against ingress of liquid: IPX1
