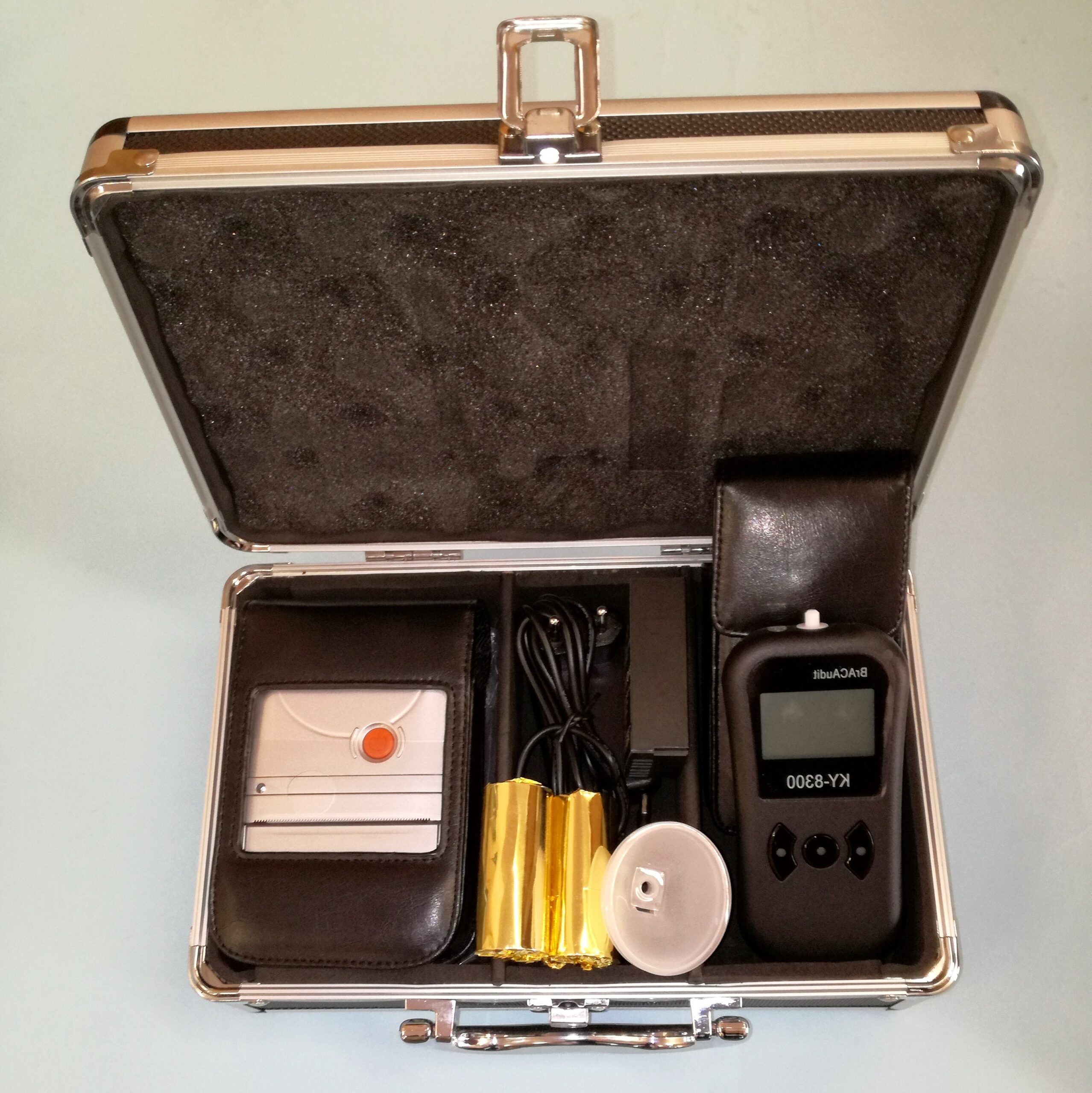

Alcohol Tester KY8300 & Printer

Product description

• The KY-8300 utilizes a UK made Electrochemical/Fuel cell Sensor, highly specific to alcohol and unaffected by other breath contaminants

Features:

• Quick and Precise Analysis: 32 bit embedded processor secures high performance of the system
• Data Handling Ability: Compact gas circuit design and advanced analysis process assure fast, accurate and stable testing performance
• Power Supply: Built-in Li-ion battery. Reliable and long-time testing action

Specifications:

• Principle of measurements: Electrochemical/fuel cell sensor, alcohol specific
• Measurement range: (BrAC) 0.000mg/L～1.500mg/L
• Resolution: 0.0001 mg/L

Accuracy: Max. Measure error, in relation to ethanol standard:

• Ethanol Vapor Concentration C /(mg/L): Deviation
• C<0.400: ±0.020mg/L
• 0.400C<1.000: ±5%
• C1.000: ±20%

Repeatability of Indicating Value:

• Ethanol Vapor Concentration C /(mg/L) : Deviation
• C<0.400: 0.007mg/L
• 0.400C<1.000: 1.75%
• C1.000 6%
• Calibration: Every 6 months
• Temperature Range Operation: －5℃～45℃
• Temperature Range-Storage:－20℃～70℃
• Optimum Storage Condition: Temperature 20℃±5, Humidity: <80%RH, Pressure: 86kPa~106kPa, No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device
• Blowing Time 3 seconds (breath flow20L/min)
• Warm-up: Time Less than 5 seconds after switching on
• Recovery Time: 5 seconds to 5 minutes, depends on Ethanol Vapor Concentration
• Analysis Time: Less than 10 seconds
• Display: 128×64 dot matrix black and white screen
• Dimensions Approx: 127mm×60mm×28mm
• Memory: 4096 records
• Operation Voltage=
• State of Charging: 5 V DC
• State of Operation: DC 3.6～4.2V
• Battery: Built-in 1000mAh/3.7V Li-ion polymerized battery
