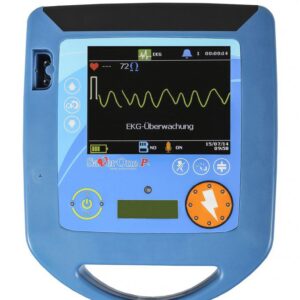

AED Saver 1 Pro

Description:

• AED Per Default, Reliable For Any BLS Rescuer, Can Be Easily
  Switched In a Manual Defibrillator Giving To ALS Responders The
  Best Decision-Making Control For a Manual Shock Timing or An
  Electric Cardioversion (Synchronised Shock).

Defibrillator:

• Operation: AED Semi-Automatic (default) ECG Monitoring
  -Manual Asynchronous or Synchronous (used to convert atrial or ventricular tachyarrhythmias).
• Energies: Standard max 200J or Power max 360J
• Waveform: Adaptive BTE (biphasic truncated exponential)
  conforming to patient chest’s impedance.
• Energy type: Escalating from 50 to 360J
• AED Protocols: Adult Standard escalating 150, 200, 200J
  Adult Power escalating 200, 250, 360J
  Paediatric (Standard or Power) 50J fixed
  (AED adult shock protocols can be customized).
• Manual Protocol: Selected by users from 50 to 360J. For electric cardioversion (in Synchronous mode) the shock is synchronised to occur with the R wave of the ECG.
• Energy Display: Screen provides the energy to deliver both in
  Manual mode or AED mode.
• Charging time:≤9 seconds with a new and fully charged battery
  depleted battery will result in a longer charging time.
• Analysis time: IEC/EN 60601-2-4 from 4 to 15 seconds
• Impedance: 20-200 ohms
• Sensitivity: IEC/EN 60601-2-4 (AHADB, MITDB source), 97%
• Specificity: IEC/EN 60601-2-4 (AHADB, MITDB source), 99%
• Controls: 2 buttons: ON/OFF, shock button;
  3 buttons: to surf the menu;
  3 buttons: select energy, charge, disarm the device
• Indicators: Status LED indicator informing on device condition
  Battery gauge with remaining capacity rate
  Audible alerts and text display with service alarms.
• Upgradeable: through a USB cable or memory card.

ECG Monitoring:

• Operations: Through defibrillation pads or standard ECG
  electrodes attached to a separate 2-Lead patient
  monitoring reusable cable SAV-C0017.
• ECG size: Manual setting through the menu.
• Heart Rate: 30-200 bpm.
• Sweep Speed: 25 mm/sec.
• Standard: IEC/EN 60601-2-27 less then the points 202.6.2.101;
  201.12.1.101.12,13; 208.6.6.2.101 not performed for the
  intended use of the device, as it is not intended for
  environments such as operating theatres
  or intensive care units.
• Display: 5,7” TFT colour, 640 x 480 pixel.

Battery options:

• Type: Li-SOCl2 Disposable, code SAV-C0903
• Autonomy: 250 complete rescue cycles (shocks at 200J and CPR) or
  160 complete rescue cycles (shocks at 360J and CPR) or
  24 hours ECG Monitoring for a new and fully charged
  battery (*).
• Shelf-Life: when stored in original packaging 5 years (*).
• Battery-Life: 4 years once installed to AED, assuming one battery insertion
  test and daily self-test but without switching AED on (*).
• Type: Li-ion Accumulator, code SAV-C0011.
• Recharging time: 2,5 hours with the charger station code SAV-C0014 (*)
  (recommended to charge every 4 months at least).
• Autonomy: 200 shocks at 200J or 110 shocks at 360J or 14 hours in
  ECG Monitoring for a new fully charged accumulator (*).
• Battery-Life: 2 years or 300 charging cycles (*).

Pads options:

• Type: Disposable, pre-gelled and self-adhesive
• Adult: Code SAV-C0846, for patient >8 years or >25 kg.
• Paediatric: Code SAV-C0016, for patient <8 years or <25 kg.
• Cable length: 120 cm.
• Shelf-Life: 30 months.

Event recording:

• Internal memory: up to 6 continuous hours of ECG and rescue events.
• Optional memory: Removable SD card; length of storage depends on card
  capacity: a 2GB card records up to 100 hours.
• Data recording: “AED1LOG“ text file with detailed self-test activity
  “AEDFILES“ with complete recorded information.
• Event review: “Saver View Express“ data manager software.

Physical:

• Size: 26,5 x 21,5 x 7,5 cm.
• Weight: 2,08 kg with disposable battery and pads
  2,13 kg with rechargeable battery and pads.

Environmental:

• Operating temperature: 0°C to 55°C (32°F TO 131°F)
• Storing/Shipping temperature: -40°C to 70°C (-40°F TO 158°F) without battery.
• Humidity: 10% to 95% relative humidity non condensing.
• Sealing (IP Protection): IEC/EN 60529 class IP54;splash proof, dust protected.
• Shock/Drop Abuse Endurance: IEC/EN 60601-1 clause 21; 1 meter drop, impact,
  force, rough handling, mobile tolerance.
• Electrostatic Discharge: IEC/EN 61000-4-2
• Electromagnetic Compatibility: IEC/EN 60601-1-2 Emission, Immunity
• Electrical Protection: IEC/EN 60601-1; Internally Powered Type BF/CF
  Directive93/42/CEE and 2007/47/CE: Class IIb
