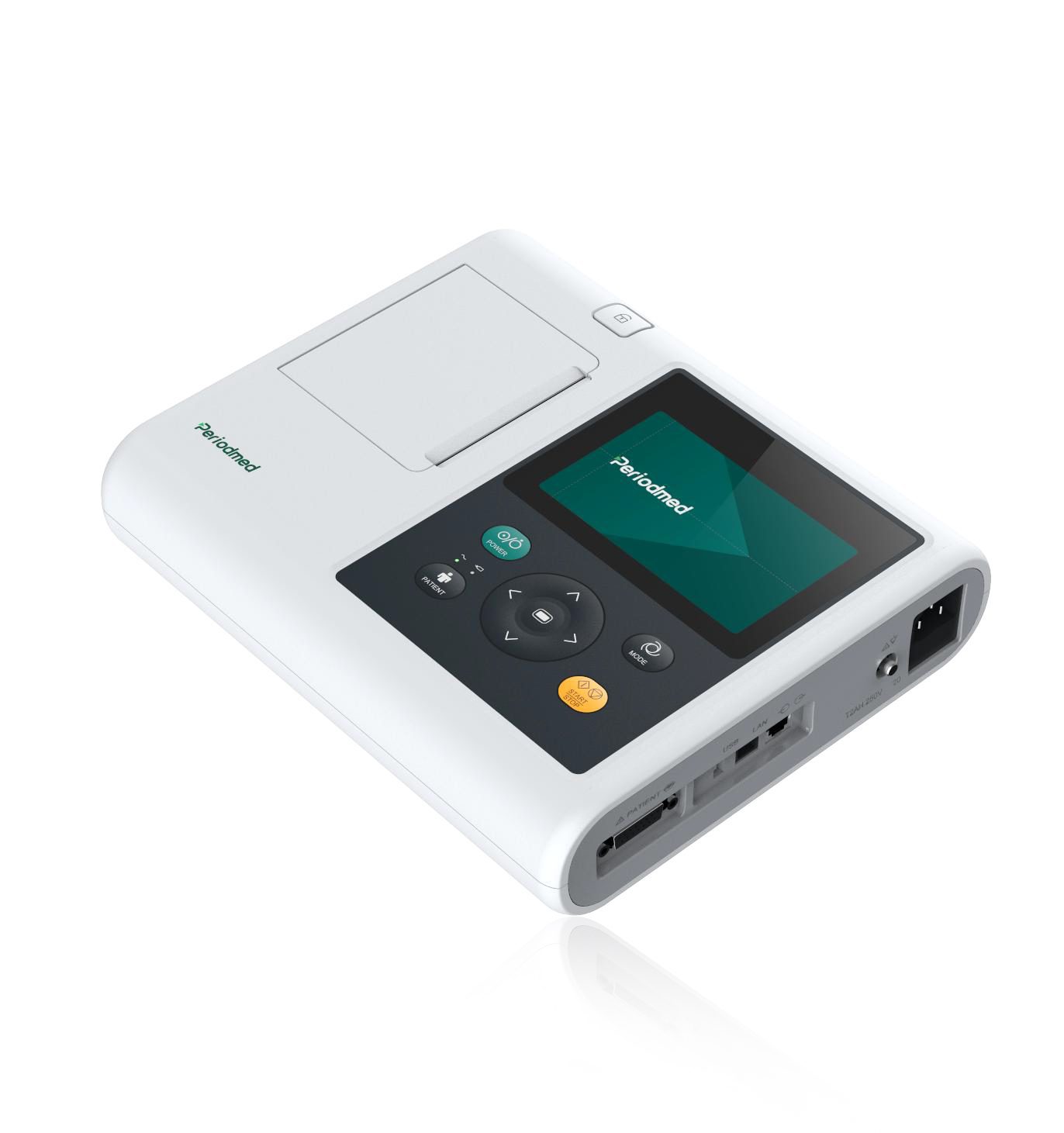

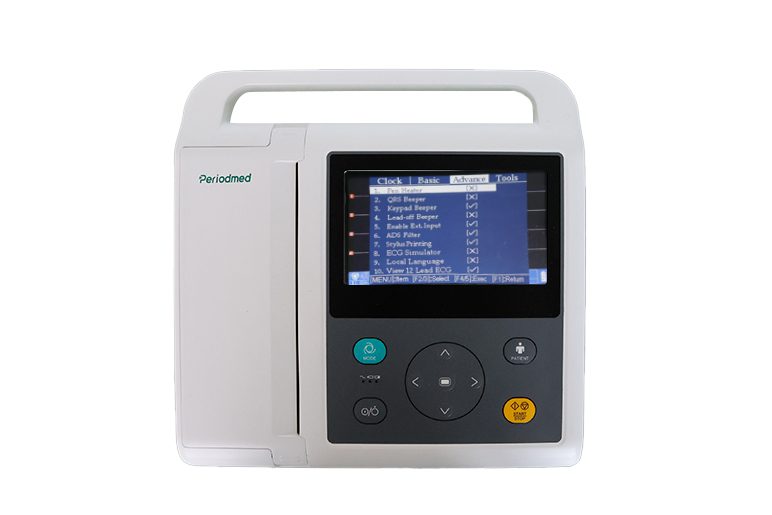

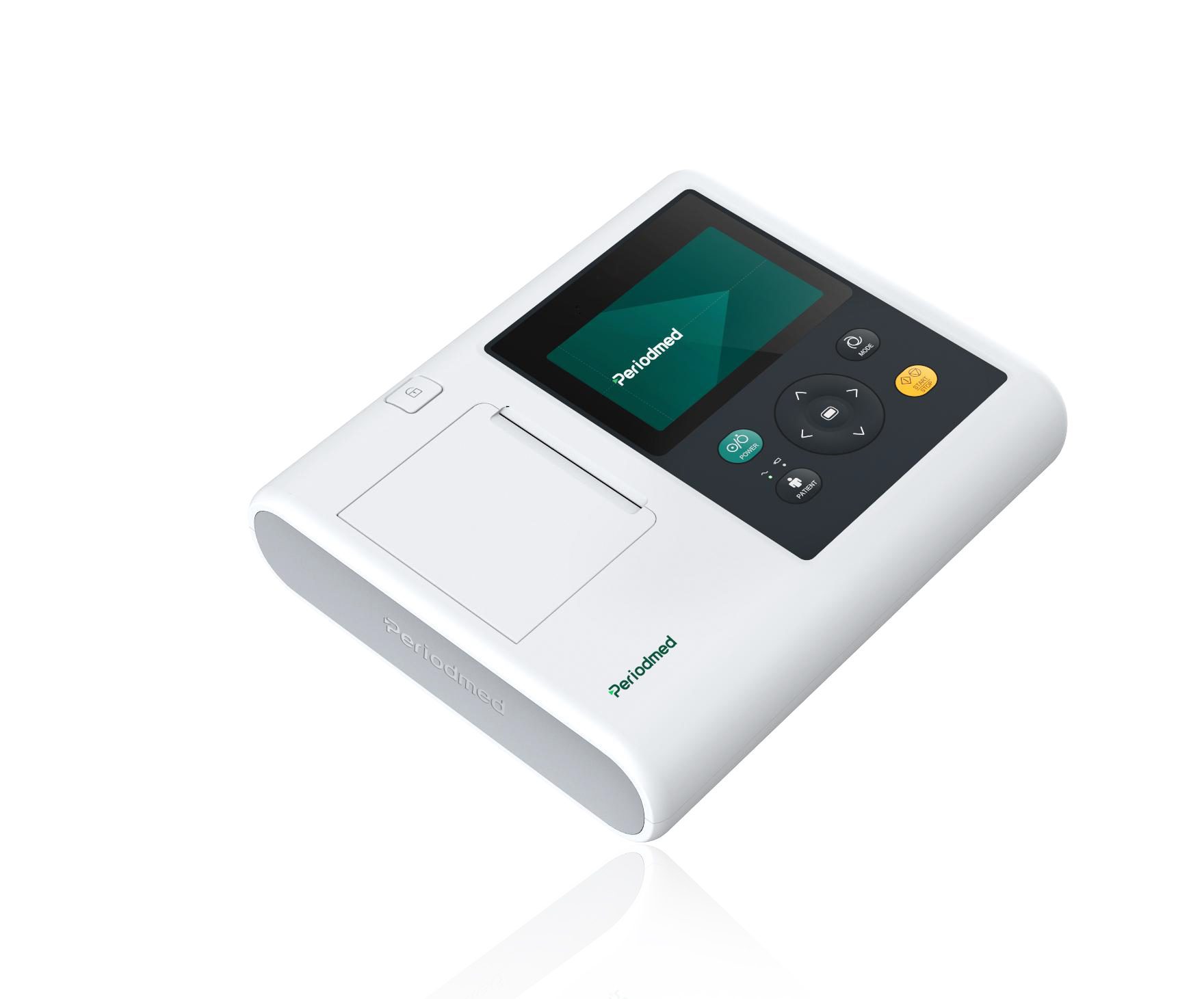

3CH ECG machine PE-E3B

Overview

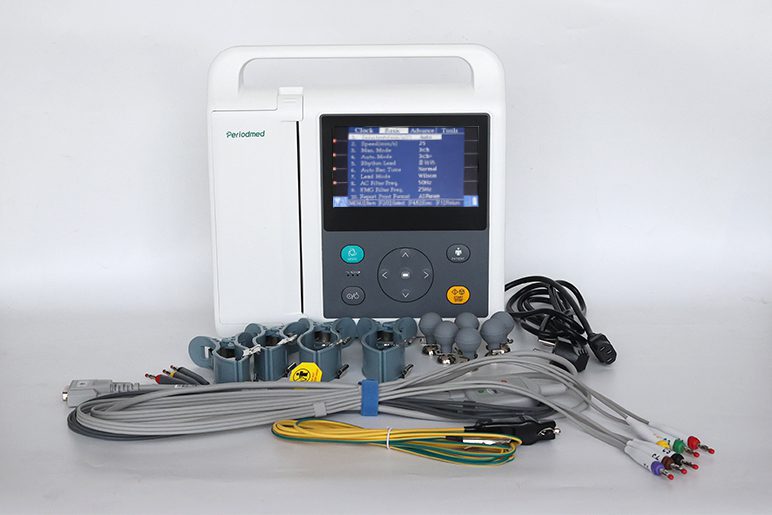

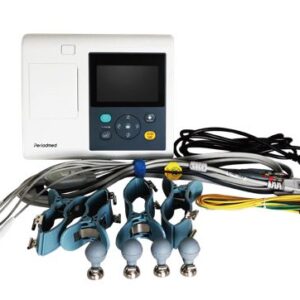

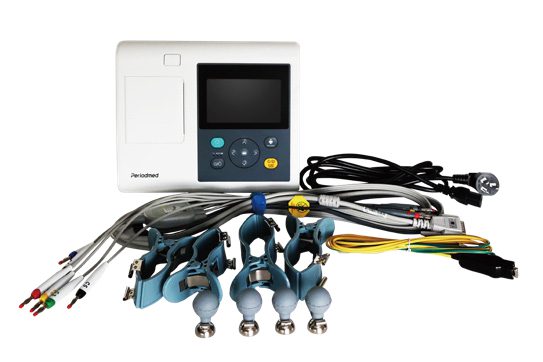

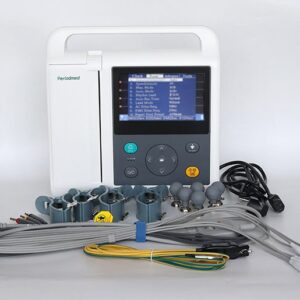

• Main unit 1set
• Patient cable 1pc
• Limb electrodes 1set ( 4pcs )
• Chest electrodes 1set ( 6pcs )
• Power cable 1pc
• Grounding cable 1pc
• Fuse 2pcs
• Paper axis 1pc
• Recording paper 1roll ( 80mmx20m )
• Operation manual 1copy
• Lead Standard 12 leads,3 channel
• Lead acquisition 12 leads synchronously acquisition
• Work mode Manual/Auto/R-R/Store
• Filter AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)
• CMRR ≥120dB(with AC Filter )
• Input Circuit Floating; Protection circuit against debrillator e ect
• Input impedance ≥50MΩ
• Input circuit current ≤0.05ųA
• Patient current leakage <10ųA
• Calibrating voltage 1mV±2%
• Voltage tolerance ≥±500mV
• Time constant ≥3.2s
• Frequency response 0.05~160Hz(-3db)
• Noise level <15ųVp-p
• Inter-channel interference ≤0.5mm
• Sensitivity Auto,2.5,5,10,20,40mm/mV(±3%)
• Recording mode 1ch+,3ch,3ch+
• Paper speed 6.25,12.5,25,50mm/s(±3%)
• Recording Paper 80mmx20m roll thermal paper
• Power supply AC:110-230V(±10%),50/60Hz,40VA DC: Built-in rechargeable Li-ion battery， 14.4V,2200mAh
• Communication Port USB, UART
• Dimension/Weight 300mmx230mmx72mm,2.8kg
